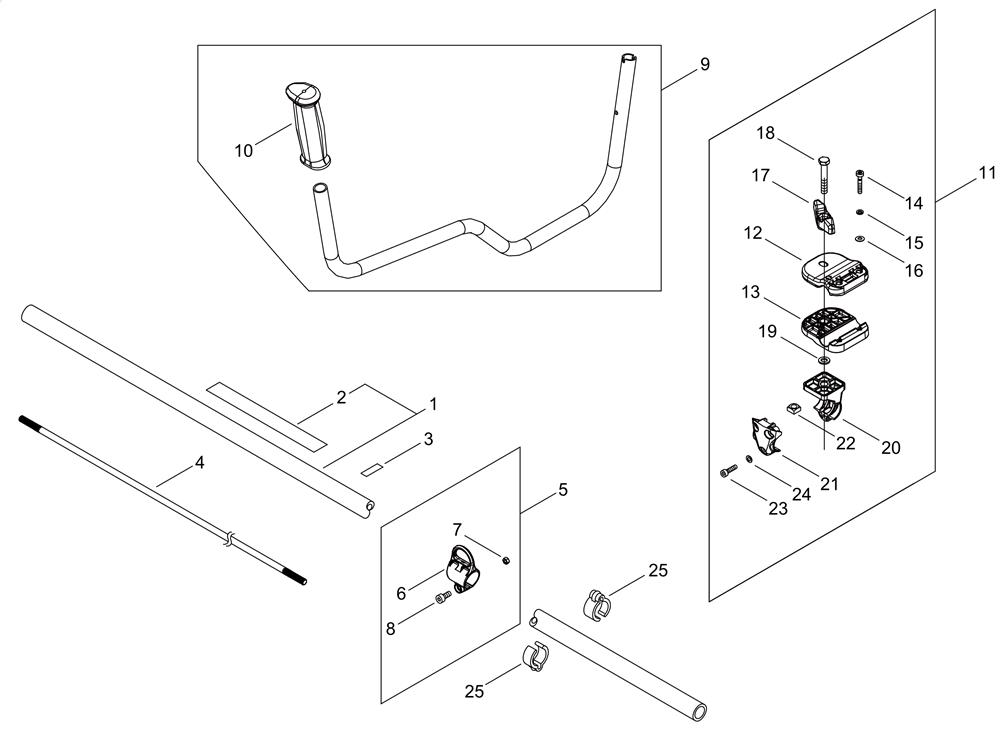

MAIN PIPE, HANDLE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P021-049000MAIN PIPE ASY£93.03 Add to
002EC-890617-43130LABEL , CAUTION£9.39 Add to
003EC-890152-04930LABEL , CAUTION£3.00 Add to
004EC-610011-25530SHAFT , DRIVE£43.29 Add to
005EC-P100-010550HOOK ASY£13.79 Add to
007EC-900500-00005NUT 5£1.62 Add to
008EC-V805-000320BOLT£2.66 Add to
009EC-P100-010560HANDLE ASY£48.30 Add to
010EC-C403-000031GRIP , HANDLE£14.39 Add to
011EC-P100-010560HANDLE ASY£48.30 Add to
012EC-C423-001090FIXTURE£14.39 Add to
013EC-C423-001100FIXTURE£15.62 Add to
014EC-V203-002500BOLT 5£2.66 Add to
015EC-900605-00005WASHER , SPRING£1.61 Add to
017EC-V299-000680KNOB£8.47 Add to
022EC-900565-50008NUT£1.96 Add to
023EC-V805-000170BOLT, TORX 5£2.66 Add to
024EC-900600-00005WASHER 5£1.47 Add to
025EC-224924-52130CLIP£6.02 Add to
