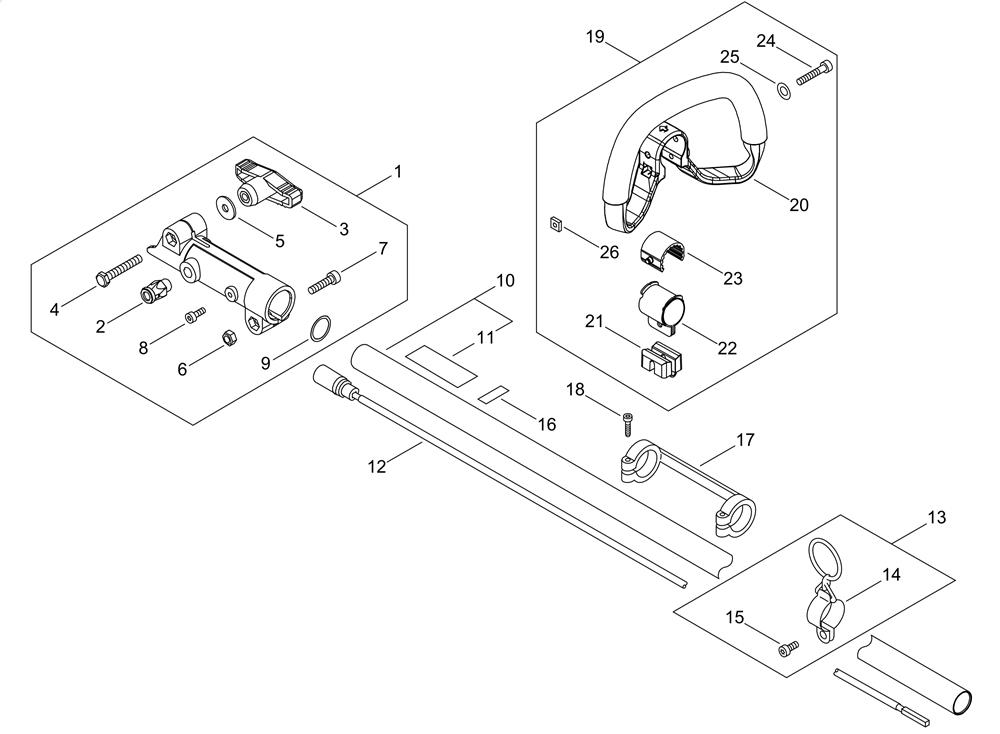

MAIN PIPE, HANDLE

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-C510-000330	COUPLING , MAIN PIPE	£60.09	Add to
002	EC-178302-56630	LATCH ASY	£11.83	Add to
003	EC-V299-000660	KNOB , FASTNER	£8.17	Add to
004	EC-91085-06040	BOLT	£2.16	Add to
005	EC-V304-000040	WASHER	£2.31	Add to
007	EC-V806-000020	BOLT TORX 6	£2.66	Add to
008	EC-V805-000130	BOLT	£2.66	Add to
009	EC-V312-000010	WASHER	£2.66	Add to
010	EC-P100-005860	MAIN PIPE ASY	£55.52	Add to
012	EC-C506-000550	SHAFT , FLEXIBLE	£58.57	Add to
013	EC-P021-051240	HOOK ASY	£8.17	Add to
014	EC-P021-046740	HOOK ASY	£8.59	Add to
015	EC-V805-000140	BOLT , TORX 5	£2.66	Add to
016	EC-890152-04930	LABEL , CAUTION	£3.00	Add to
019	EC-P021-047682	HANDLE ASY	£24.17	Add to
022	EC-C610-000050	FIXTURE , CUSHION	£3.92	Add to
024	EC-V805-000280	BOLT, TORX 5	£2.66	Add to
025	EC-900603-00005	WASHER 5	£1.47	Add to
