106 cm MULCHING DECK(from s/n 521515 from 2009)(105810)

Parts list

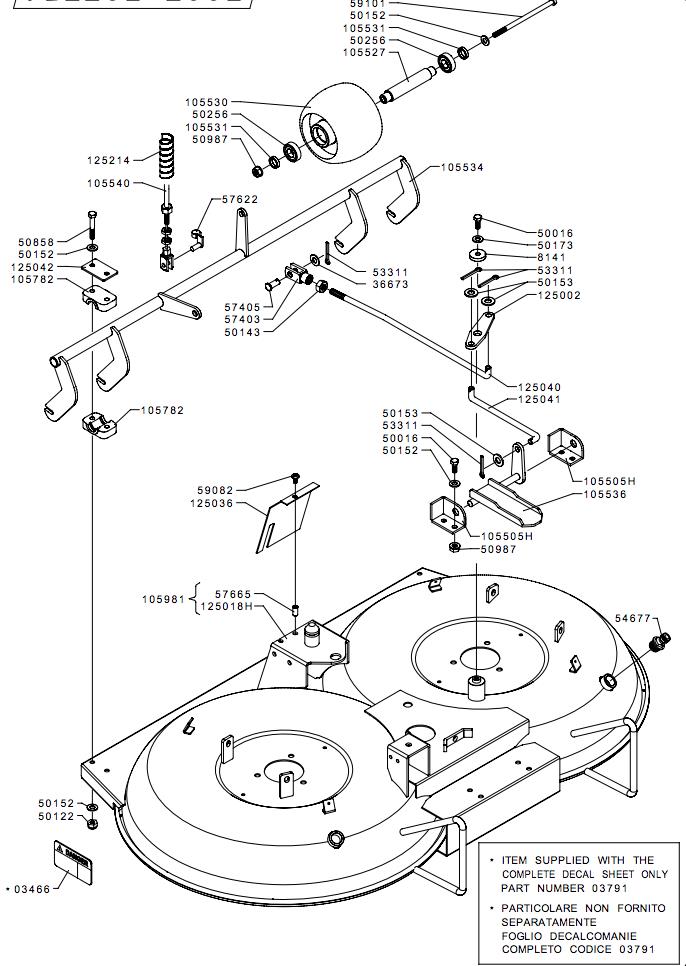

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0379103791COMPL DECAL SHEET FD220/230£25.11 Add to
105527105527PIN£14.81 Add to
105530105530WHEEL£48.27 Add to
105531105531SPACER£4.69 Add to
105540105540CABLE£38.49 Add to
105782105782BLOCK£6.90 Add to
125214125214SPIRAL FOR CABLES£3.93 Add to
3667336673SPACER£4.07 Add to
5001650016SCREW£18.80 Add to
5012250122NUT£1.44 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5025650256BEARING£9.83 Add to
5085850858SCREW£1.71 Add to
5098750987NUT£2.72 Add to
5331153311SPLIT PIN£1.40 Add to
5467754677JOINT£6.88 Add to
5740357403YOKE£9.71 Add to
5740557405PIN£4.17 Add to
5762257622CLIP£3.23 Add to
5766557665THREADED INSERT£2.41 Add to
81418141WASHER£3.84 Add to
