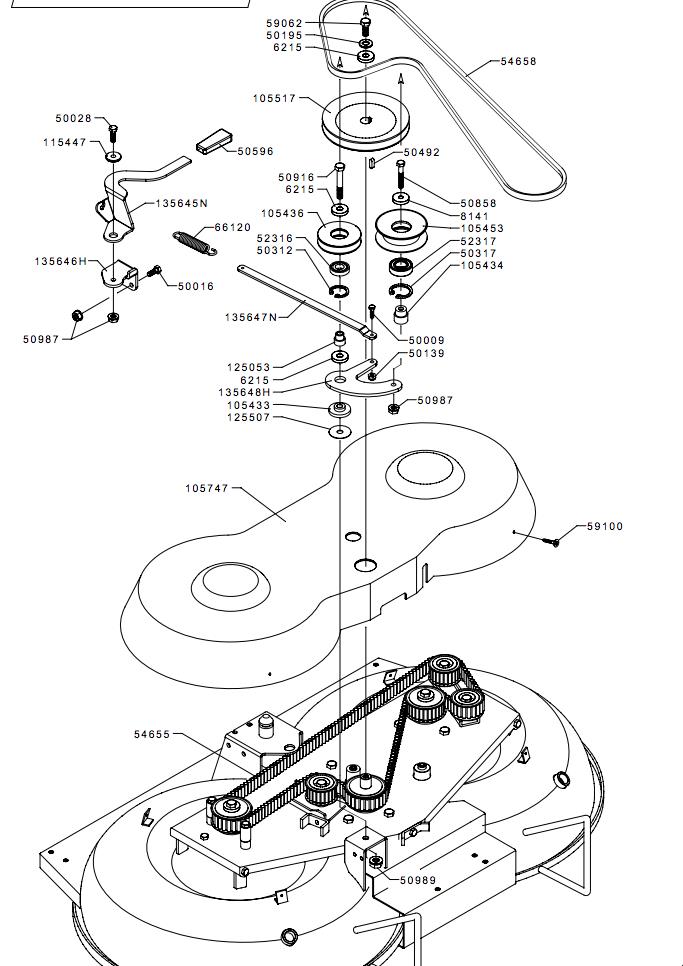

106 cm MULCHING DECK(from s/n 521515 from 2009)(105812)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105433105433BUSHING£4.69 Add to
105434105434BUSHING£6.44 Add to
105517105517PULLEY£100.91 Add to
105747105747HOOD£137.74 Add to
115447115447BUSHING£3.81 Add to
125507125507SPACER£2.22 Add to
155904155904GUIDE PULLEY£41.08 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5013950139NUT£1.34 Add to
5019550195WASHER£1.45 Add to
5031250312CIRCLIP£1.71 Add to
5031750317CIRCLIP£1.97 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5085850858SCREW£1.71 Add to
5091650916SCREW£2.12 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5231652316BEARING£8.54 Add to
5231752317BEARING£9.89 Add to
5465554655BELT£264.83 Add to
5465854658BELT£80.07 Add to
5906259062SCREW£1.71 Add to
5910059100SCREW£1.36 Add to
62156215WASHER£4.15 Add to
6612066120SPRING BELT STRECHER£10.36 Add to
81418141WASHER£3.84 Add to
