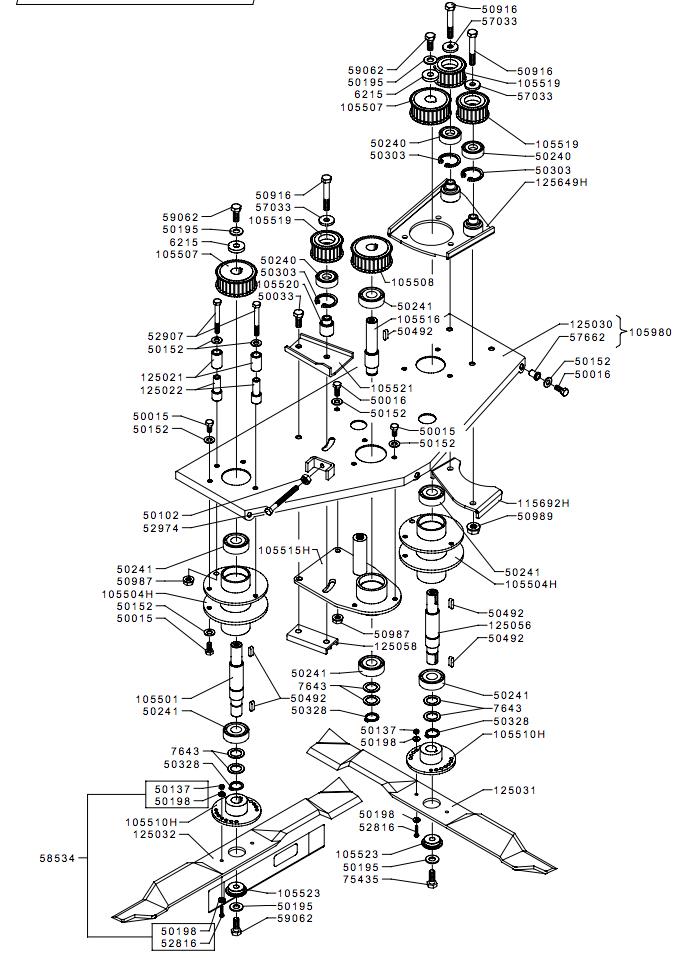

106 cm MULCHING DECK PULLEY & BLADES(from s/n 303001 from 2003)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105501105501SHAFT£49.78 Add to
105504H105504HBLADE HOLDER HUB£81.33 Add to
105507105507PULLEY£70.11 Add to
105508105508PULLEY£74.60 Add to
105510H105510HBLADE HOLDER HUB£34.64 Add to
105515H105515HHUB£66.58 Add to
105516105516SHAFT£84.19 Add to
105519105519GUIDE PULLEY£46.14 Add to
105523105523BUSHING£8.53 Add to
115692H115692HPLATE£9.82 Add to
125032125032CUTTING BLADE£48.65 Add to
125056125056SHAFT£57.92 Add to
125649H125649HPLATE£36.11 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5003350033SCREW£1.66 Add to
5010250102NUT£1.36 Add to
5013750137NUT£1.30 Add to
5015250152WASHER£1.30 Add to
5019550195WASHER£1.45 Add to
5019850198WASHER£2.82 Add to
5024050240BEARING£12.73 Add to
5030350303CIRCLIP£2.04 Add to
5032850328CIRCLIP£1.44 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5091650916SCREW£2.12 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5244952449BEARING£11.58 Add to
5281652816SCREW£1.32 Add to
5290752907SCREW£1.76 Add to
5297452974SCREW£2.02 Add to
5703357033WASHER£2.27 Add to
5766257662THREADED INSERT£1.89 Add to
5853458534BAG£4.93 Add to
5853458534BAG£4.93 Add to
5906259062SCREW£1.71 Add to
62156215WASHER£4.15 Add to
7543575435SCREW£6.07 Add to
76437643SPACER£2.71 Add to
