130 CM MP CUTTING DECK (from sn 363301 from 2006)

Parts list

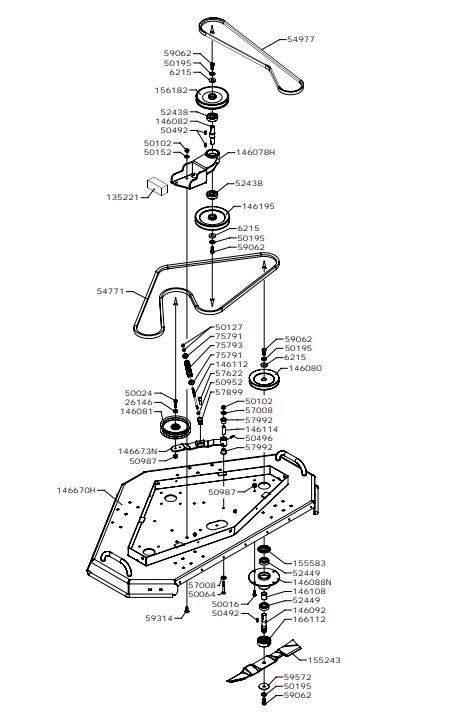

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
146080146080PULLEY£92.23 Add to
146081146081GUIDE PULLEY£73.43 Add to
146082146082SHAFT£43.87 Add to
146088N146088NBLADE HOLDER HUB£75.64 Add to
146092146092SHAFT£32.19 Add to
146108146108SPACER£4.21 Add to
146114146114SPACER£10.50 Add to
146195146195PULLEY£86.97 Add to
146670H146670HCUTTING DECK£853.27 Add to
146673N146673NSUPPORT£43.72 Add to
155243155243CUTTING BLADE£44.01 Add to
155583155583GUARD£4.27 Add to
156182156182PULLEY£146.88 Add to
166112166112BLADE SUPPORT HUB FD280/130MP£51.81 Add to
2614626146WASHER£3.64 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5006450064SCREW£1.85 Add to
5010250102NUT£1.36 Add to
5012750127NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5019550195WASHER£1.45 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5049650496FITTING£1.90 Add to
5095250952NUT£1.36 Add to
5098750987NUT£2.72 Add to
5243852438BEARING£16.15 Add to
5244952449BEARING£11.58 Add to
5477154771BELT£157.56 Add to
5497754977BELT£104.81 Add to
5700857008WASHER£1.35 Add to
5762257622CLIP£3.23 Add to
5789957899YOKE£6.56 Add to
5799257992BUSHING£4.56 Add to
5906259062SCREW£1.71 Add to
5931459314SCREW£1.85 Add to
62156215WASHER£4.15 Add to
7579175791SPRING GUIDE£3.19 Add to
7579375793SPRING£9.03 Add to
