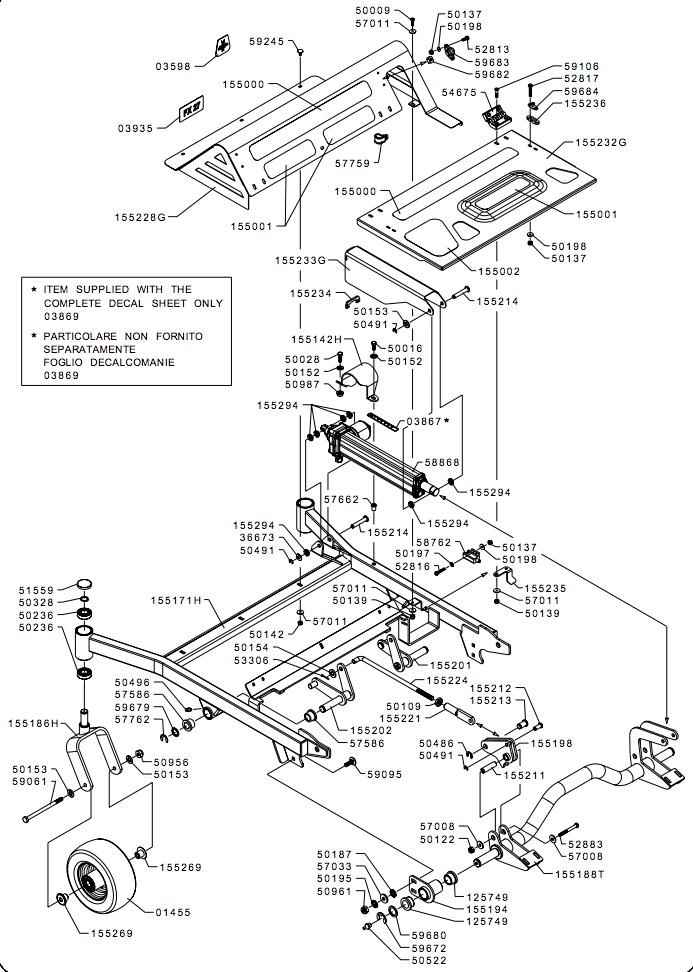

132 cm CUTTING DECK FRAME(from s/n 567583 from 2013)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0145501455RUBBER WHEEL£124.19 Add to
0359803598STICKER£7.50 Add to
125749125749BUSHING£8.33 Add to
155000155000TAPE£12.50 Add to
155001155001TAPE£8.54 Add to
155002155002FOOTBOARD£12.50 Add to
155142H155142HGUARD£16.82 Add to
155171H155171HFRAME£707.82 Add to
155186H155186HYOKE£73.90 Add to
155188T155188TARM£286.60 Add to
155194155194HINGE£26.35 Add to
155198155198BRACKET£49.69 Add to
155201155201LEVER£61.80 Add to
155202155202LEVER£61.80 Add to
155211155211SPACER£9.89 Add to
155212155212PIN£14.75 Add to
155213155213PIN, COUPLING£14.75 Add to
155214155214PIN, COUPLING£13.52 Add to
155221155221ADJUSTER£24.61 Add to
155224155224ROD£26.35 Add to
155228G155228GFOOTBOARD£150.66 Add to
155232G155232GFOOTBOARD£94.65 Add to
155233G155233GCUTTING HEIGHT INDICATOR£49.69 Add to
155234155234CUTTING HEIGHT INDICATOR£10.77 Add to
155235155235SMALL PLATE£5.58 Add to
155236155236SMALL PLATE£7.50 Add to
155269155269BUSHING£11.01 Add to
155294155294WASHER£6.44 Add to
3667336673SPACER£4.07 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5013750137NUT£1.30 Add to
5013950139NUT£1.34 Add to
5014250142NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5018750187WASHER£1.79 Add to
5019550195WASHER£1.45 Add to
5019750197WASHER£1.29 Add to
5019850198WASHER£2.82 Add to
5023650236BEARING£14.72 Add to
5032850328CIRCLIP£1.44 Add to
5048650486RING SNAP£1.52 Add to
5049150491RING SNAP£1.44 Add to
5049650496FITTING£1.90 Add to
5052250522FITTING£2.27 Add to
5095650956NUT£1.47 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5155951559BOOT£3.79 Add to
5281352813SCREW£1.30 Add to
5281652816SCREW£1.32 Add to
5281752817SCREW£1.32 Add to
5288352883SCREW£1.86 Add to
5330653306SPLIT PIN£1.36 Add to
5467554675HINGE£10.62 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5703357033WASHER£2.27 Add to
5758657586BUSHING£4.01 Add to
5766257662THREADED INSERT£1.89 Add to
5775957759CLAMP£4.01 Add to
5776257762RING SNAP£1.86 Add to
5876258762MICRO-SWITCH£17.46 Add to
5886858868ELECTRIC CYLINDER£575.44 Add to
5906159061SCREW£3.11 Add to
5909559095SCREW£2.31 Add to
5910659106SCREW£1.61 Add to
5924559245SCREW£1.52 Add to
5967959679SPACER£6.44 Add to
5968359683RUBBER HOLDER£14.84 Add to
5968459684PIN£17.35 Add to
