15LD350-400 ELECTRIC START(from s/n 102801 to s/n 530811 from 1984 to 2010)

Parts list

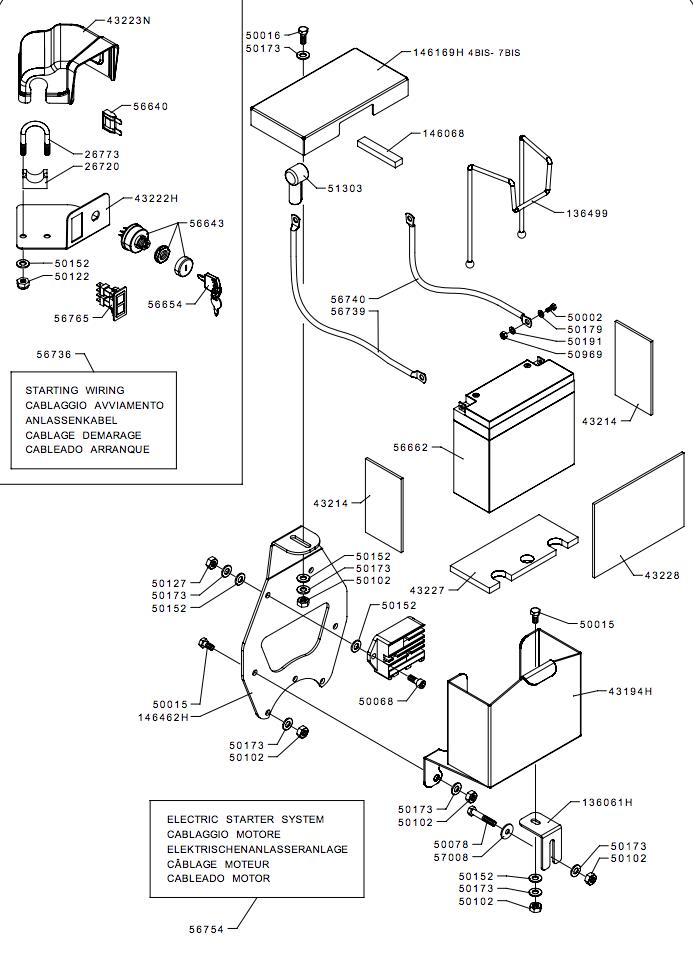

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136499136499RUBBER BAND£6.12 Add to
146169H146169HGUARD£16.07 Add to
146462H146462HSUPPORT£27.43 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
4321443214INSULATOR£4.38 Add to
43222H43222HSUPPORT£7.95 Add to
43223N43223NBOX£8.56 Add to
4322743227INSULATOR£5.43 Add to
4322843228INSULATOR£5.43 Add to
5000250002SCREW£1.37 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5006850068SCREW£1.52 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5012750127NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017950179WASHER£1.30 Add to
5096950969NUT£1.30 Add to
5130351303INSULATING CAP£2.81 Add to
5664056640FUSE£5.67 Add to
5664356643IGNITION SWITCH£33.57 Add to
5665456654KEYS COUPLE£11.84 Add to
5666256662DRY BATTERY£128.27 Add to
5673656736HARNESS, WIRING£62.80 Add to
5673956739CABLES BATTERY BOOSTER£20.56 Add to
5674056740CABLES BATTERY BOOSTER£18.77 Add to
5675456754HARNESS, WIRING£33.20 Add to
5676556765WARNING LIGHT£11.55 Add to
5700857008WASHER£1.35 Add to
