62 cm CUTTING DECK(from s/n 335641 from 2006)

Parts list

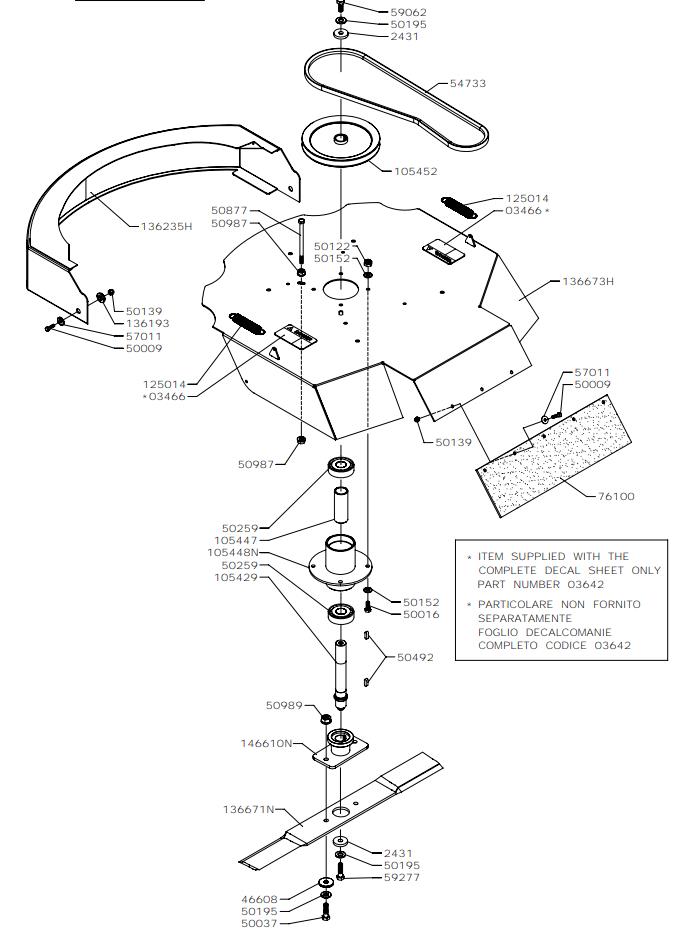

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105429105429SHAFT£47.55 Add to
105447105447SPACER£8.32 Add to
105448N105448NHUB£42.76 Add to
105452105452PULLEY£47.55 Add to
125014125014BRAKE SPRING£15.51 Add to
136193136193BUSHING£4.22 Add to
136671N136671NCUTTING BLADE£79.09 Add to
24312431WASHER£4.07 Add to
4660846608WASHER£3.44 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015250152WASHER£1.30 Add to
5019550195WASHER£1.45 Add to
5025950259BEARING£39.40 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5087750877SCREW£2.58 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5473354733BELT£39.06 Add to
5701157011WASHER£1.30 Add to
5906259062SCREW£1.71 Add to
5927759277SCREW£2.04 Add to
7610076100GUARD PLATE£30.05 Add to
