68 cm ALL PURPOSE FLAIL(from s/n 692483 from 2020)

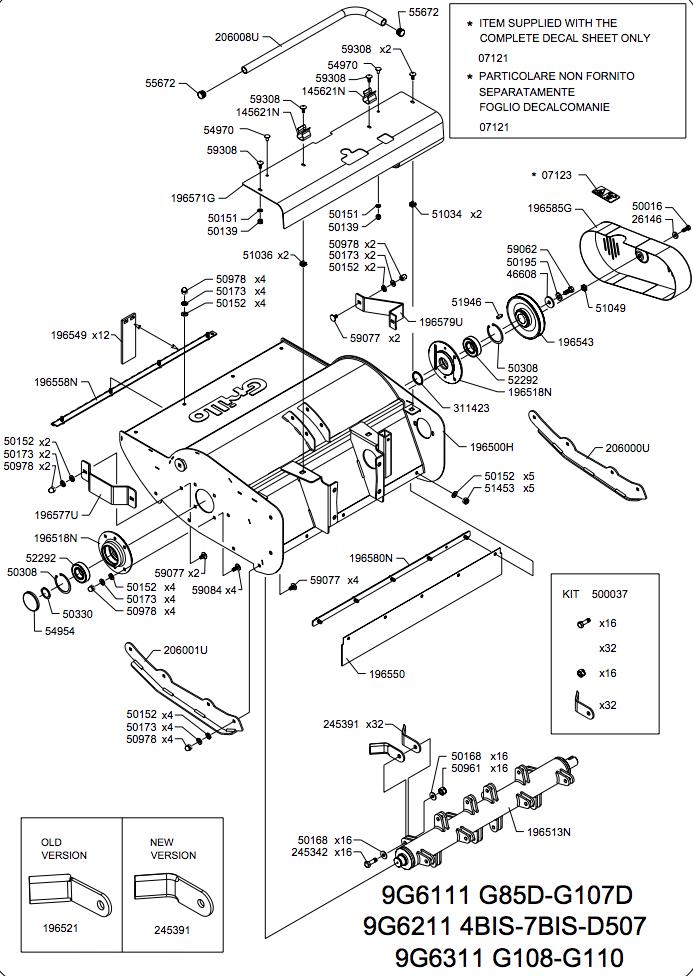

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0712107121STICKER£20.41 Add to
145621N145621NPLASTIC YOKE£13.37 Add to
196500H196500HFAIRING£488.07 Add to
196521196521BLADE£6.92 Add to
196543196543PULLEY£57.14 Add to
196549196549RUBBER SHOVEL£13.22 Add to
196550196550GUARD£20.41 Add to
196558N196558NBRACKET£37.98 Add to
196571G196571GHOOD£36.38 Add to
196577U196577UBRACKET£12.45 Add to
196579U196579UBRACKET£12.45 Add to
196580N196580NBRACKET£14.83 Add to
196585G196585GMETAL SHEET CARTER£100.22 Add to
196613N196613NBEARING RIGHT SUPPORT£83.46 Add to
196619N196619NBEARING LEFT SUPPORT£83.46 Add to
196638196638SPACER£5.33 Add to
206000U206000USIDE SKID ALL PURPOSE FLAIL£30.04 Add to
206001U206001USIDE SKID ALL PURPOSE FLAIL£30.04 Add to
216935F216935FROTARY CUTTER ROLL CM.68£733.57 Add to
245342245342SCREW£5.88 Add to
245391245391BLADE£6.92 Add to
311423311423SPACER£2.87 Add to
4660846608WASHER£3.44 Add to
500037500037CUTTING BLADE£233.99 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5016850168WASHER£1.45 Add to
5017350173WASHER£1.34 Add to
5019550195WASHER£1.45 Add to
5030850308CIRCLIP£2.27 Add to
5033050330CIRCLIP£1.76 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5097850978NUT£1.75 Add to
5103451034CAGE-NUT£1.58 Add to
5103651036CAGE-NUT£1.52 Add to
5104951049CAGE-NUT£1.74 Add to
5145351453NUT£1.36 Add to
5152251522SEAL RING£6.30 Add to
5194651946FEATHER KEY£2.09 Add to
5244752447BEARING£18.18 Add to
5495454954BOOT£3.31 Add to
5567255672PLUG£1.58 Add to
5906259062SCREW£1.71 Add to
5907759077SCREW£1.74 Add to
5908459084SCREW£1.69 Add to
5930859308SCREW£1.92 Add to
5960359603VALVE£11.13 Add to
