68CM ALL PURPOSE FLAIL TRANSMISSION UNIT (from sn 228001 from 1996)

Parts list

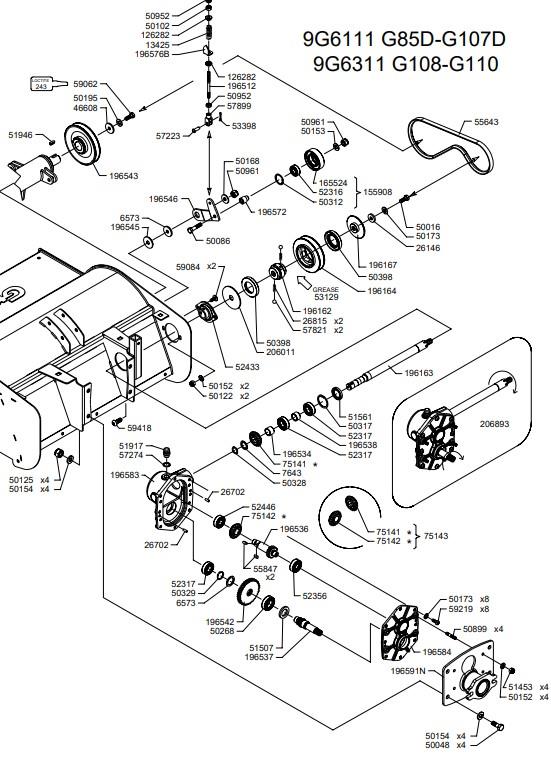

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126282126282BUSHING£5.96 Add to
1342513425SPRING£4.47 Add to
155908155908GUIDE PULLEY£35.91 Add to
196162196162COUPLING£48.98 Add to
196163196163SHAFT£125.00 Add to
196164196164PULLEY£76.73 Add to
196167196167COUPLING£30.98 Add to
196512196512ROD£7.50 Add to
196534196534SPACER£6.84 Add to
196536196536SHAFT£65.86 Add to
196537196537SHAFT£57.14 Add to
196538196538SPACER£6.84 Add to
196542196542GEAR£72.82 Add to
196543196543PULLEY£57.14 Add to
196545196545BUSHING£6.84 Add to
196546196546BRACKET£7.65 Add to
196572196572BUSHING£5.25 Add to
196576B196576BINDICATOR£7.65 Add to
196583196583GEARBOX£180.02 Add to
196584196584COVER£87.46 Add to
196591N196591NCONNECTION£111.33 Add to
206893206893GEARBOX£946.07 Add to
2614626146WASHER£3.64 Add to
2670226702PIN£4.37 Add to
2681526815SPRING£4.89 Add to
4660846608WASHER£3.44 Add to
5001650016SCREW£18.80 Add to
5004850048SCREW£1.90 Add to
5008650086SCREW£1.86 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5016850168WASHER£1.45 Add to
5017350173WASHER£1.34 Add to
5019550195WASHER£1.45 Add to
5026850268BEARING£12.73 Add to
5031250312CIRCLIP£1.71 Add to
5031750317CIRCLIP£1.97 Add to
5032850328CIRCLIP£1.44 Add to
5032950329CIRCLIP£1.68 Add to
5039850398SEAL RING£6.49 Add to
5089950899STUD£2.04 Add to
5095250952NUT£1.36 Add to
5096150961NUT£1.61 Add to
5145351453NUT£1.36 Add to
5150751507SEAL RING£4.94 Add to
5156151561SEAL RING£3.87 Add to
5191751917PLUG£10.71 Add to
5194651946FEATHER KEY£2.09 Add to
5231652316BEARING£8.54 Add to
5231752317BEARING£9.89 Add to
5235652356BEARING£9.25 Add to
5243352433BEARING£39.65 Add to
5244652446BEARING£9.10 Add to
5339853398SPLIT PIN£1.34 Add to
5564355643BELT£66.70 Add to
5584755847FEATHER KEY£2.07 Add to
5722357223PIN£3.31 Add to
5727457274WASHER£1.47 Add to
5782157821BALL£1.74 Add to
5789957899YOKE£6.56 Add to
5906259062SCREW£1.71 Add to
5908459084SCREW£1.69 Add to
5921959219SCREW£1.60 Add to
5941859418SCREW£0.63 Add to
65736573SPACER£2.70 Add to
7514375143RING£219.21 Add to
76437643SPACER£2.71 Add to
