70 cm CUTTING DECK(from s/n 335501 from 2005)

Parts list

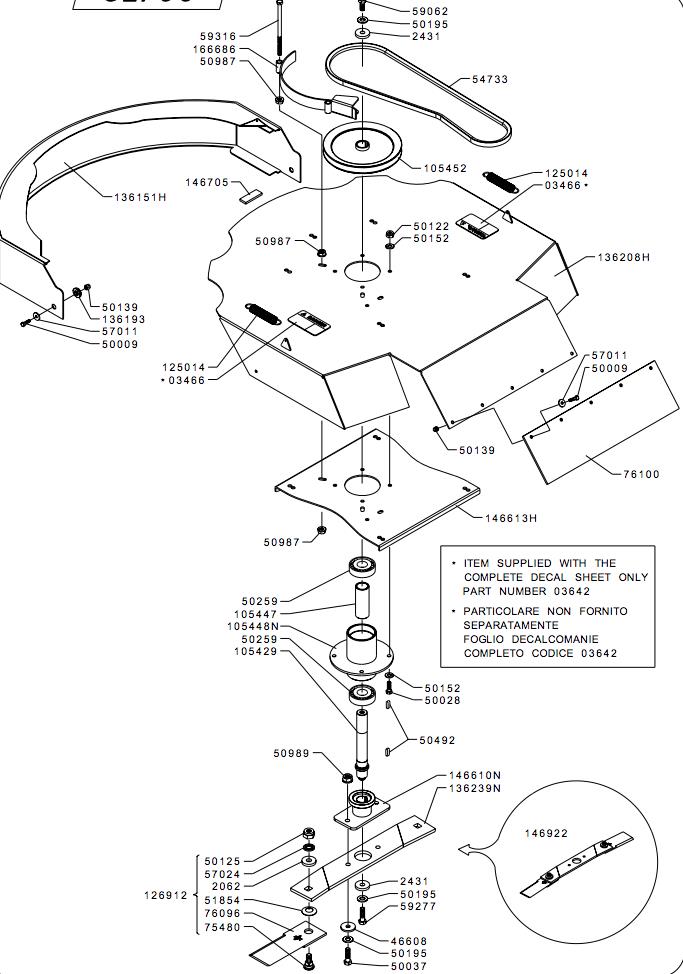

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105429105429SHAFT£47.55 Add to
105447105447SPACER£8.32 Add to
105448N105448NHUB£42.76 Add to
105452105452PULLEY£47.55 Add to
125014125014BRAKE SPRING£15.51 Add to
126912126912CUTTING BLADE£69.96 Add to
136193136193BUSHING£4.22 Add to
136208H136208HPLATE£300.37 Add to
136239N136239NCENTRAL CASING£46.91 Add to
146922146922CUTTING BLADE£78.02 Add to
20622062WASHER£3.77 Add to
24312431WASHER£4.07 Add to
4660846608WASHER£3.44 Add to
5000950009SCREW£1.42 Add to
5002850028SCREW£1.49 Add to
5003750037SCREW£1.76 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5013950139NUT£1.34 Add to
5015250152WASHER£1.30 Add to
5019550195WASHER£1.45 Add to
5025950259BEARING£39.40 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5185451854BELLEVILLE SPRING£2.60 Add to
5473354733BELT£39.06 Add to
5701157011WASHER£1.30 Add to
5702457024WASHER£1.49 Add to
5906259062SCREW£1.71 Add to
5927759277SCREW£2.04 Add to
5931659316SCREW£3.73 Add to
7548075480BLADE PIN£11.58 Add to
7609676096CUTTING BLADE£19.44 Add to
7610076100GUARD PLATE£30.05 Add to
