78 CM CUTTING DECK (from sn 571504 to sn 591341 from 2013 to 2015)

Parts list

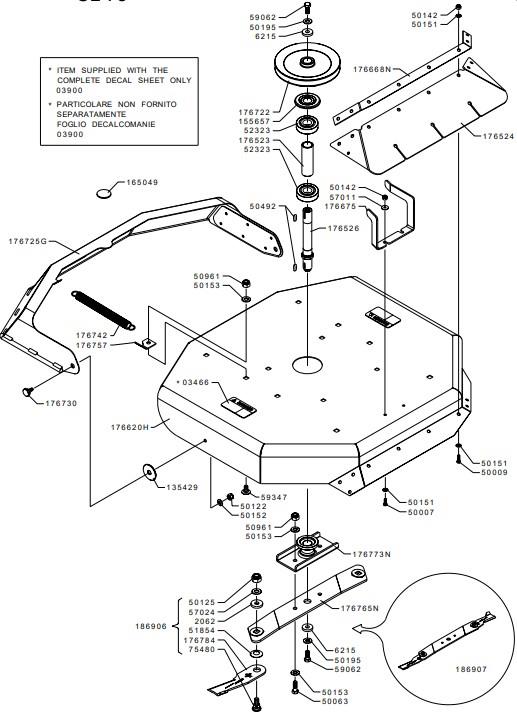

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
135429135429WASHER£2.00 Add to
155657155657GUARD£4.83 Add to
165049165049RUBBER WEATHERSTRIP£9.53 Add to
176523176523SPACER£13.42 Add to
176524176524GUARD£51.03 Add to
176526176526SHAFT£156.01 Add to
176620H176620HCUTTING DECK£354.70 Add to
176668N176668NBRACKET£19.72 Add to
176722176722PULLEY£125.85 Add to
176725G176725GMOWER DECK DOOR£171.98 Add to
176730176730SCREW£4.50 Add to
176742176742SPRING£6.77 Add to
176757176757BRACKET£3.84 Add to
176765N176765NCENTRAL CASING£60.10 Add to
176773N176773NBLADE HOLDER HUB£65.76 Add to
176784176784CUTTING BLADE£46.65 Add to
186906186906CL75 DECK CUTTING TIPS+SCREWS£113.07 Add to
186907186907CUTTING BLADE£138.99 Add to
20622062WASHER£3.77 Add to
5000750007SCREW£1.50 Add to
5000950009SCREW£1.42 Add to
5006350063SCREW£1.61 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5019550195WASHER£1.45 Add to
5049250492FEATHER KEY 6X 6X20£2.12 Add to
5096150961NUT£1.61 Add to
5185451854BELLEVILLE SPRING£2.60 Add to
5701157011WASHER£1.30 Add to
5702457024WASHER£1.49 Add to
5906259062SCREW£1.71 Add to
5934759347SCREW£0.79 Add to
62156215WASHER£4.15 Add to
7548075480BLADE PIN£11.58 Add to
