91 CM CUTTING DECK ARM (from sn 363301 to sn 590642 from 2006 to 2015)

Parts list

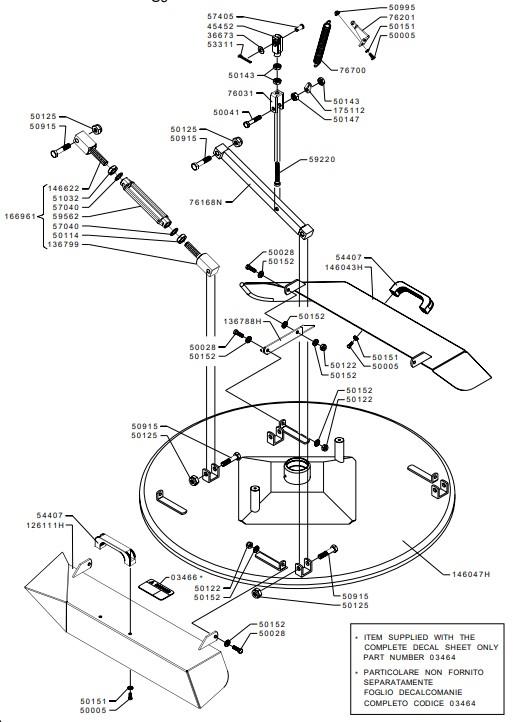

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0346403464STICKER£30.77 Add to
126111H126111HMOWER DECK LEFT DOOR£132.55 Add to
136799136799ROD£24.20 Add to
146043H146043HMOWER DECK RIGHT DOOR£132.55 Add to
146047H146047HCUTTING DECK£846.08 Add to
166961166961ROD£83.82 Add to
175112175112SMALL PLATE£4.64 Add to
3667336673SPACER£4.07 Add to
4545245452YOKE£18.31 Add to
5000550005SHAFT -INPUT£1.53 Add to
5002850028SCREW£1.49 Add to
5004150041SCREW£1.81 Add to
5011450114NUT£1.85 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5014350143NUT£1.44 Add to
5014750147NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5091550915SCREW£2.27 Add to
5099550995NUT£1.32 Add to
5103251032NUT£4.36 Add to
5331153311SPLIT PIN£1.40 Add to
5440754407HANDLE£9.75 Add to
5704057040WASHER£1.68 Add to
5740557405PIN£4.17 Add to
5922059220SCREW£2.12 Add to
5956259562ROD£20.01 Add to
7603176031YOKE£9.31 Add to
76168N76168NARM£36.91 Add to
7620176201BRACKET£7.42 Add to
7670076700SPRING£7.90 Add to
