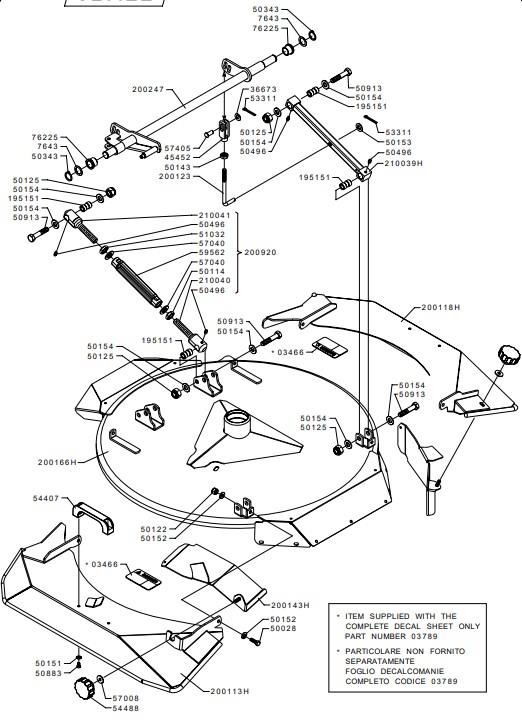

91 CM CUTTING DECK FRAME (from sn 587548 to sn 605910 from 2014 to 2016)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0378903789STICKER£15.79 Add to
195151195151SPACER£8.68 Add to
200113H200113HMOWER DECK LEFT DOOR£139.71 Add to
200118H200118HMOWER DECK RIGHT DOOR£139.71 Add to
200123200123ROD£13.81 Add to
200143H200143HGUARD PLATE£32.24 Add to
200166H200166HPLATE£649.66 Add to
210040210040ROD£22.54 Add to
210041210041ROD£42.20 Add to
3667336673SPACER£4.07 Add to
4545245452YOKE£18.31 Add to
5002850028SCREW£1.49 Add to
5011450114NUT£1.85 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5014350143NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5034350343CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5088350883SCREW£1.44 Add to
5091350913SCREW£2.58 Add to
5103251032NUT£4.36 Add to
5331153311SPLIT PIN£1.40 Add to
5440754407HANDLE£9.75 Add to
5448854488KNOB£6.41 Add to
5700857008WASHER£1.35 Add to
5704057040WASHER£1.68 Add to
5740557405PIN£4.17 Add to
5956259562ROD£20.01 Add to
7622576225BUSHING£6.12 Add to
76437643SPACER£2.71 Add to
