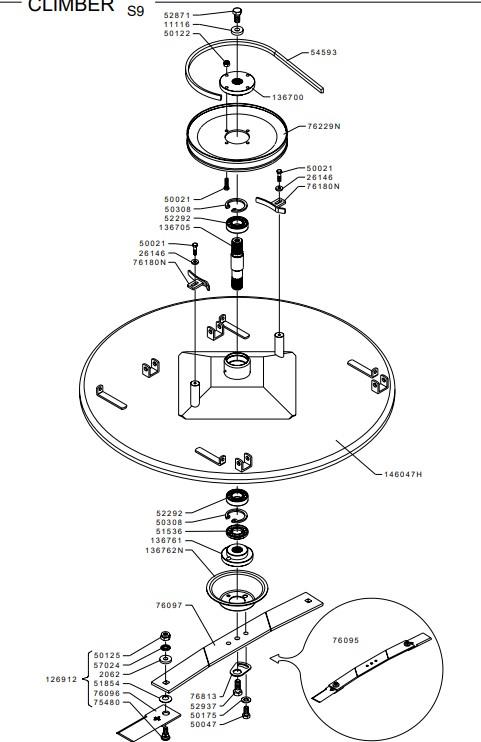

91 CM CUTTING DECK TRANSMISSION AND BLADES (from sn 385501 from 2007)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1111611116WASHER£2.91 Add to
126912126912CUTTING BLADE£69.96 Add to
136700136700HUB£50.98 Add to
136705136705SHAFT£62.19 Add to
136761136761BLADE HOLDER HUB£37.75 Add to
136762N136762NHUB PROTECTION£11.68 Add to
146047H146047HCUTTING DECK£846.08 Add to
20622062WASHER£3.77 Add to
2614626146WASHER£3.64 Add to
5002150021SCREW£1.46 Add to
5004750047SCREW£1.78 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5017550175WASHER£1.42 Add to
5030850308CIRCLIP£2.27 Add to
5153651536SEAL RING£7.35 Add to
5185451854BELLEVILLE SPRING£2.60 Add to
5229252292BEARING£18.71 Add to
5287152871SCREW£2.72 Add to
5293752937SCREW£2.38 Add to
5459354593BELT£58.88 Add to
5702457024WASHER£1.49 Add to
7548075480BLADE PIN£11.58 Add to
7609576095CUTTING BLADE£131.01 Add to
7609676096CUTTING BLADE£19.44 Add to
7609776097CENTRAL CASING£47.07 Add to
76180N76180NGUARD£16.87 Add to
76229N76229NPULLEY£67.78 Add to
7681376813SMALL PLATE£5.24 Add to
