91CM CUTTING DECK (from sn 363301 to sn 385500 from 2006 to 2007)

Parts list

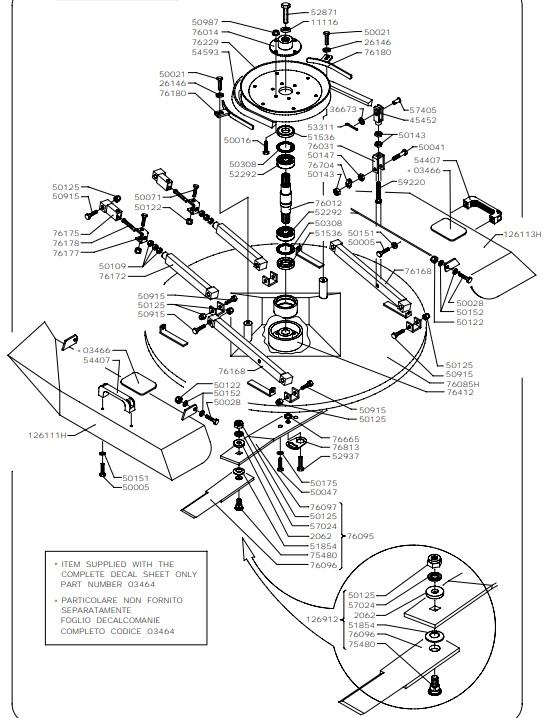

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0346403464STICKER£30.77 Add to
1111611116WASHER£2.91 Add to
126111H126111HMOWER DECK LEFT DOOR£132.55 Add to
126912126912CUTTING BLADE£69.96 Add to
20622062WASHER£3.77 Add to
2614626146WASHER£3.64 Add to
3667336673SPACER£4.07 Add to
4545245452YOKE£18.31 Add to
5000550005SHAFT -INPUT£1.53 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5004150041SCREW£1.81 Add to
5004750047SCREW£1.78 Add to
5007150071SCREW£1.75 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5014350143NUT£1.44 Add to
5014750147NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017550175WASHER£1.42 Add to
5030850308CIRCLIP£2.27 Add to
5091550915SCREW£2.27 Add to
5098750987NUT£2.72 Add to
5153651536SEAL RING£7.35 Add to
5185451854BELLEVILLE SPRING£2.60 Add to
5229252292BEARING£18.71 Add to
5287152871SCREW£2.72 Add to
5293752937SCREW£2.38 Add to
5331153311SPLIT PIN£1.40 Add to
5440754407HANDLE£9.75 Add to
5459354593BELT£58.88 Add to
5702457024WASHER£1.49 Add to
5740557405PIN£4.17 Add to
5850258502CLS9 SHAFT KIT£164.53 Add to
5922059220SCREW£2.12 Add to
7548075480BLADE PIN£11.58 Add to
7601476014HUB£66.77 Add to
7603176031YOKE£9.31 Add to
7609576095CUTTING BLADE£131.01 Add to
7609676096CUTTING BLADE£19.44 Add to
7609776097CENTRAL CASING£47.07 Add to
7617776177YOKE£8.04 Add to
7617876178PIN£7.32 Add to
7666576665SPACER£6.48 Add to
7681376813SMALL PLATE£5.24 Add to
