9G2611 SWINGING FRONT SCRAPER(from s/n 571989 from 2013)

Parts list

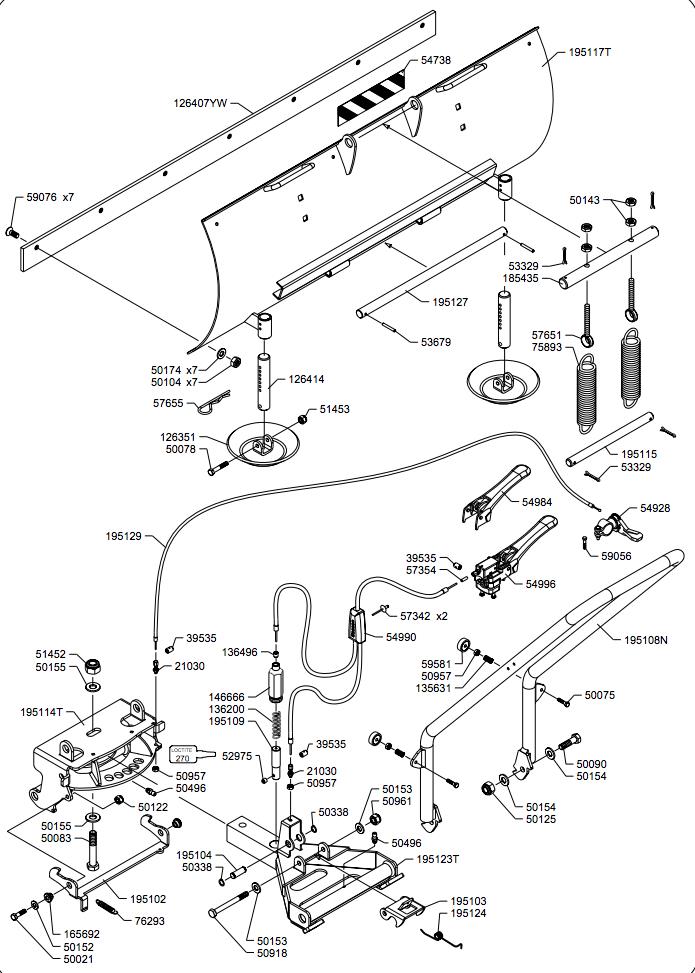

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126351126351CAP£26.13 Add to
126414126414PIN£22.84 Add to
135631135631SPRING£4.02 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
146666146666BUSHING£21.17 Add to
165692165692BUSHING£4.78 Add to
195129195129WIRE£8.10 Add to
2103021030ADJUSTER£3.67 Add to
3953539535CLAMP£3.23 Add to
5002150021SCREW£1.46 Add to
5007550075SCREW£1.42 Add to
5007850078SCREW£1.69 Add to
5008350083SCREW£3.43 Add to
5009050090SCREW£2.09 Add to
5010450104NUT£1.44 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5014350143NUT£1.44 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5015550155WASHER£1.42 Add to
5017450174WASHER£1.50 Add to
5033850338CIRCLIP£1.42 Add to
5049650496FITTING£1.90 Add to
5095750957NUT£1.34 Add to
5096150961NUT£1.61 Add to
5145251452NUT£2.53 Add to
5145351453NUT£1.36 Add to
5297552975ALLEN SCREW£1.56 Add to
5332953329SPLIT PIN£1.42 Add to
5367953679SPRING PIN£1.49 Add to
5492854928ACCELERATOR CONTROL LEVER£13.37 Add to
5498454984LEVER£9.73 Add to
5499054990DUPLICATOR£31.68 Add to
5499654996LEVER£24.75 Add to
5734257342RIVET£1.39 Add to
5735457354BOOT£1.60 Add to
5765157651ROD£5.23 Add to
5765557655SPLIT PIN£2.48 Add to
5905659056SCREW£1.45 Add to
5907659076SCREW£1.81 Add to
5958159581MAGNET£17.97 Add to
7589375893SPRING£26.99 Add to
7629376293SPRING£6.87 Add to
