  • ACTIVE CLUTCH HANDLE(from s/n 692483 to s/n 704844 from 2020 to 2021)

ACTIVE CLUTCH HANDLE(from s/n 692483 to s/n 704844 from 2020 to 2021)

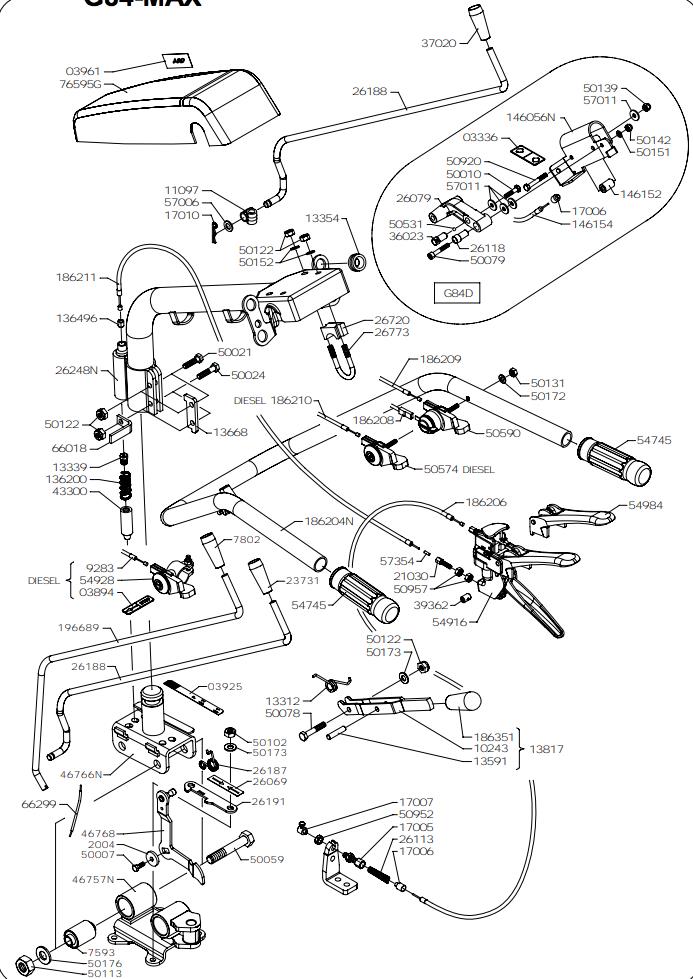

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0333603336LOCK DEVICE DECAL SHEET£1.58 Add to
0389403894STICKER£2.09 Add to
0392503925STICKER£2.75 Add to
1024310243LEVER£18.62 Add to
1109711097GEARBOX ARTICULATION£3.34 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
1335413354RING£3.28 Add to
1359113591PIN£3.57 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
1381713817HANDLE£22.88 Add to
146056N146056NDIFF. BLOCK LEVER SUPPORT£13.91 Add to
146152146152SPACER£5.10 Add to
146154146154WIRE£9.97 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
1700717007CLAMP£2.61 Add to
1701017010SPLIT PIN£1.99 Add to
186204N186204NHANDLEBAR£75.78 Add to
186206186206WIRE£13.39 Add to
186208186208WIRE£6.92 Add to
186209186209WIRE£8.56 Add to
186210186210WIRE£9.42 Add to
186211186211WIRE£8.56 Add to
186351186351KNOB£4.51 Add to
196689196689REVERSE GEAR CONTROL ROD£30.42 Add to
20042004WASHER£3.69 Add to
2103021030ADJUSTER£3.67 Add to
2373123731KNOB£3.67 Add to
2606926069STICKER£2.51 Add to
2607926079HANDLE£5.80 Add to
2611326113SPRING£3.64 Add to
2611826118BUSHING£2.91 Add to
2618726187LEVER SPRING£3.69 Add to
2618826188CONTROL ROD£18.04 Add to
2619126191SMALL PLATE£7.36 Add to
26248N26248NSTEERING COLUMN£143.59 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
3602336023CONNECTION£5.46 Add to
3702037020KNOB£3.93 Add to
4330043300ROD£5.23 Add to
46757N46757NSUPPORT£64.59 Add to
46766N46766NSUPPORT£51.43 Add to
4676846768LEVER£36.88 Add to
5000750007SCREW£1.50 Add to
5001050010SCREW£1.42 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5005950059SCREW£3.23 Add to
5007850078SCREW£1.69 Add to
5007950079SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5011350113NUT£1.71 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5013950139NUT£1.34 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017650176WASHER£1.60 Add to
5053150531BALL£1.49 Add to
5057450574ACCELERATOR CONTROL LEVER£8.74 Add to
5059050590ACCELERATOR CONTROL LEVER£24.66 Add to
5092050920SCREW£1.45 Add to
5095250952NUT£1.36 Add to
5095750957NUT£1.34 Add to
5474554745HANDLE£5.77 Add to
5491654916LEVER£31.20 Add to
5492854928ACCELERATOR CONTROL LEVER£13.37 Add to
5498454984LEVER£9.73 Add to
5700657006WASHER£1.36 Add to
5701157011WASHER£1.30 Add to
5735457354BOOT£1.60 Add to
6601866018GEAR HINDERING BRACKET£4.79 Add to
6629966299WIRE£3.48 Add to
75937593SILENTBLOC£22.02 Add to
76595G76595GGUARD£24.26 Add to
78027802KNOB£4.62 Add to
92839283WIRE£5.41 Add to
