ADJUSTABLE COVER AND TILLER c6 (from sn 585297 from 2014)

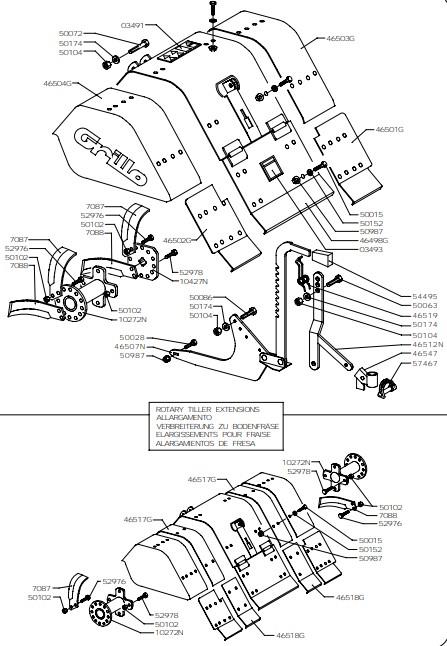

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349103491STICKER£2.95 Add to
0349303493STICKER£2.95 Add to
10272N10272NSPACER£42.08 Add to
10427N10427NHUB£46.99 Add to
46498G46498GCENTRAL CASING£200.97 Add to
46501G46501GGUARD£16.19 Add to
46502G46502GGUARD£16.19 Add to
46503G46503GSIDE£95.32 Add to
46504G46504GSIDE£95.32 Add to
46507N46507NBLADE£47.24 Add to
46512N46512NROD£18.35 Add to
46517G46517GEXTENSION£22.62 Add to
46518G46518GEXTENSION£13.51 Add to
4651946519SPRING£6.53 Add to
4654746547CONNECTION£24.90 Add to
5001550015SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5006350063SCREW£1.61 Add to
5007250072SCREW£2.26 Add to
5008650086SCREW£1.86 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5017450174WASHER£1.50 Add to
5098750987NUT£2.72 Add to
5297652976SCREW£1.49 Add to
5297852978SCREW£1.59 Add to
5449554495HANDLE£3.31 Add to
5746757467PIN£4.37 Add to
70877087BLADE RIGHT£5.96 Add to
70887088BLADE LEFT£5.96 Add to
