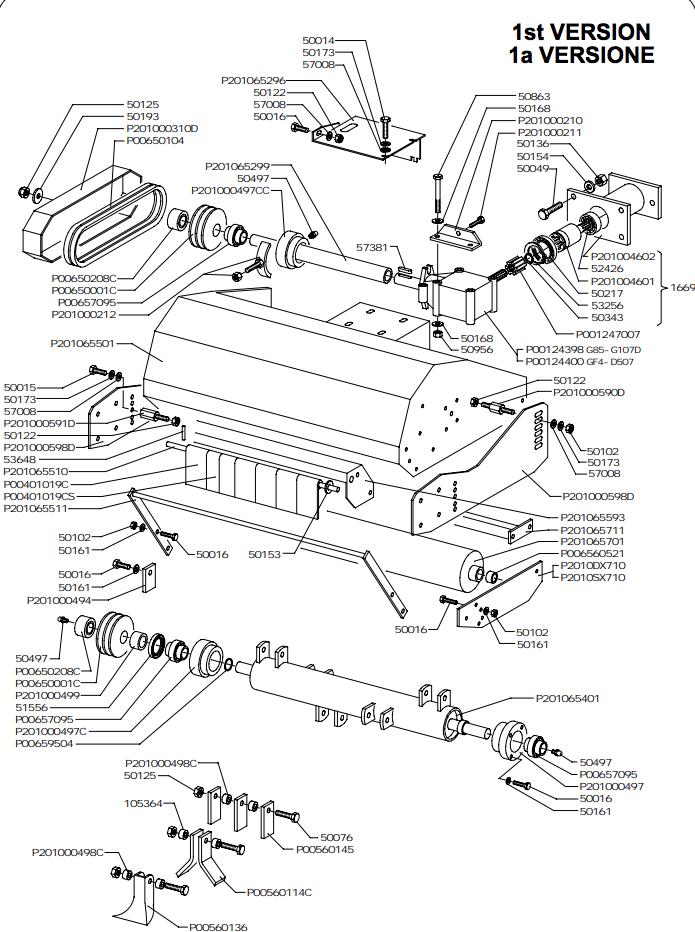

ALL PURPOSE FLAIL cm 65(from sn 228001 from 1996)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105364105364SPACER£3.23 Add to
166907166907FLANGE£635.18 Add to
5001450014SCREW£1.44 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5004950049SCREW£2.04 Add to
5007650076SCREW£2.77 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5016150161WASHER£1.66 Add to
5016850168WASHER£1.45 Add to
5017350173WASHER£1.34 Add to
5021750217BEARING£37.62 Add to
5034350343CIRCLIP£1.42 Add to
5049750497FITTING£2.70 Add to
5086350863SCREW£3.48 Add to
5095650956NUT£1.47 Add to
5155651556SEAL RING£8.42 Add to
5242652426BEARING£16.59 Add to
5700857008WASHER£1.35 Add to
5738157381FEATHER KEYS£2.48 Add to
P00124398P00124398GEAR BOX£463.91 Add to
P00124400P00124400BACK GEAR£558.51 Add to
P001247007P001247007BUSHING£87.48 Add to
P00401019CP00401019CSTONES/CHIPS PROTECTION£33.19 Add to
P00401019CSP00401019CSSTONES/CHIPS PROTECTION£6.27 Add to
P00560114CP00560114CBLADE£4.51 Add to
P00560136P00560136VANE£15.03 Add to
P00560145P00560145BLADE£8.81 Add to
P00650001CP00650001CPULLEY£70.06 Add to
P00650104P00650104BELT£27.20 Add to
P00650208CP00650208CSELF-LOCKING UNITS£57.82 Add to
P00657095P00657095BEARING£20.69 Add to
P00659504P00659504O-RING£1.98 Add to
P201000497CP201000497CSUPPORT£70.57 Add to
P201000497CCP201000497CCSUPPORT£60.98 Add to
P201000499P201000499BUSHING£14.12 Add to
P201004601P201004601FLANGE£221.42 Add to
P201004602P201004602CONNECTION£221.42 Add to
P2010DX710P2010DX710PLATE£46.23 Add to
P2010SX710P2010SX710PLATE£46.23 Add to
