B&S 7180-7220 HYDRAULIC EQUIPMENT (from sn 633911 from 2017)

Parts list

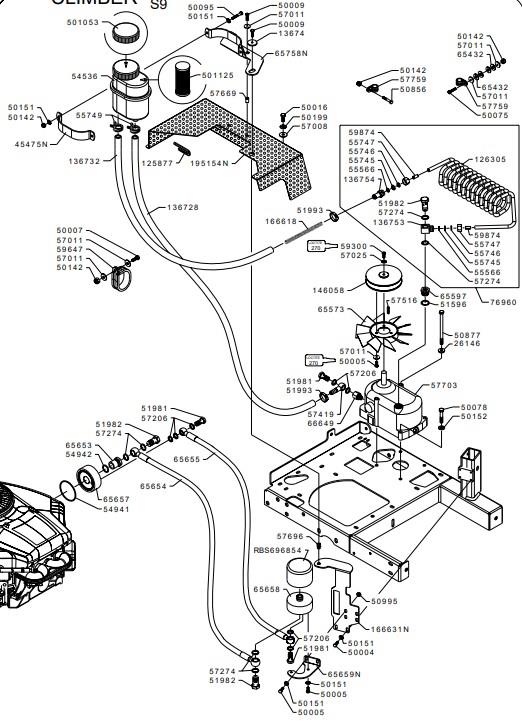

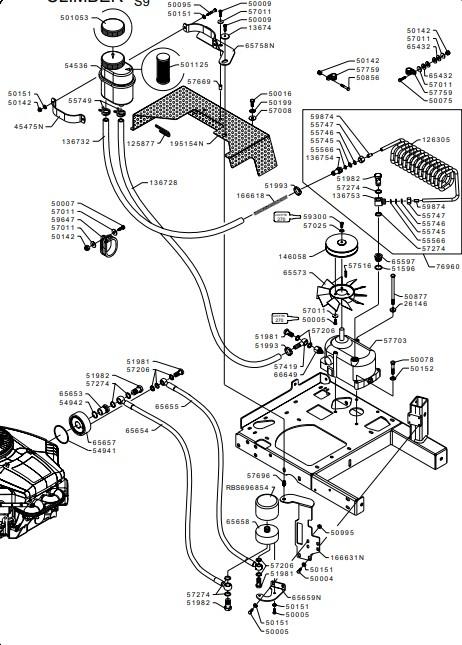

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136728136728PIPE£8.73 Add to
136732136732OIL PIPE 1/2 X 340£7.03 Add to
1367413674WASHER£3.43 Add to
136753136753FITTING£10.41 Add to
136754136754RUBBER HOLDER£4.31 Add to
146058146058HYDR ENGINE PULLEY CLS9£64.23 Add to
166618166618SPRING£4.81 Add to
2614626146WASHER£3.64 Add to
45475N45475NCLAMP£6.94 Add to
5000450004SCREW£1.36 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000750007SCREW£1.50 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5007550075SCREW£1.42 Add to
5007850078SCREW£1.69 Add to
5009550095SCREW£1.42 Add to
501053501053TANK£18.18 Add to
501125501125OIL FILTER£24.47 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5085650856SCREW£1.42 Add to
5087750877SCREW£2.58 Add to
5099550995NUT£1.32 Add to
5159651596O-RING£0.42 Add to
5198151981HOLLON SCREW£4.45 Add to
5198251982HOLLON SCREW£5.36 Add to
5199351993CLAMP£2.66 Add to
5453654536TANK£74.59 Add to
5494154941O-RING£1.59 Add to
5494254942O-RING£1.34 Add to
5556655566O-RING£1.26 Add to
5574555745WASHER£1.44 Add to
5574655746RING£1.44 Add to
5574755747JOINT£5.38 Add to
5574955749CLAMP£0.42 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5702557025WASHER£1.34 Add to
5720657206WASHER£1.44 Add to
5727457274WASHER£1.47 Add to
5741957419EYE JOINT£7.82 Add to
5751657516FEATHER KEY£1.10 Add to
5766957669THREADED INSERT£1.64 Add to
5769657696THREADED INSERT£1.61 Add to
5770357703TRANSMISSION£1,419.28 Add to
5775957759CLAMP£4.01 Add to
5930059300SCREW£1.49 Add to
5964759647CLAMP£4.22 Add to
5987459874BUSHING£1.90 Add to
6543265432RUBBER WASHER£1.97 Add to
6557365573BLOWER£34.79 Add to
6559765597PIPE REDUCTION£11.97 Add to
6565365653PIPE REDUCTION£13.72 Add to
6565465654HYDRAULIC HOSE£29.47 Add to
6565565655HYDRAULIC HOSE£26.45 Add to
6565765657FLANGE£46.23 Add to
6565865658FLANGE£53.13 Add to
65659N65659NBRACKET£9.27 Add to
65758N65758NSUPPORT£20.71 Add to
6664966649CONNECTION£10.67 Add to
7696076960COOLING PART£155.21 Add to
RBS696854RBS696854OIL FILTER£51.19 Add to
