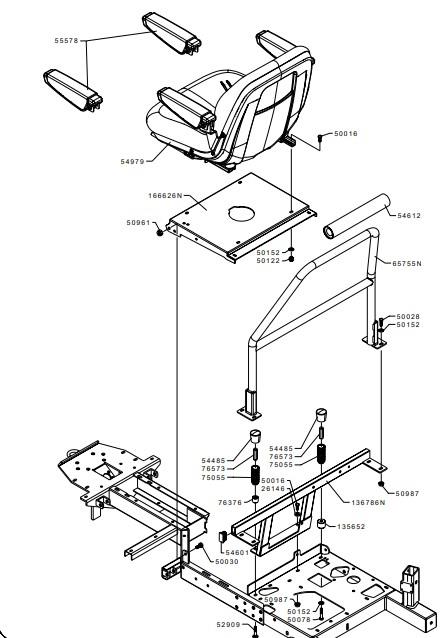

B&S 7220 SEAT AND ROLL BAR (from sn 633911 to sn 682021 from 2017 to 2019)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
135652135652SPACER£6.20 Add to
166626N166626NSEAT SUPPORT£91.16 Add to
2614626146WASHER£3.64 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5003050030SCREW£1.64 Add to
5007850078SCREW£1.69 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5290952909SCREW£0.82 Add to
5448554485PLUG£3.09 Add to
5460154601PLUG£0.78 Add to
5461254612SURF PROTECTOR£10.57 Add to
5497954979SEAT£523.24 Add to
65755N65755NROLL-BAR£128.55 Add to
7505575055SEAT SPRING£9.99 Add to
7637676376SPACER£6.46 Add to
7657376573EXTENSION£3.28 Add to
