BODY(from s/n 564371 from 2012)

Parts list

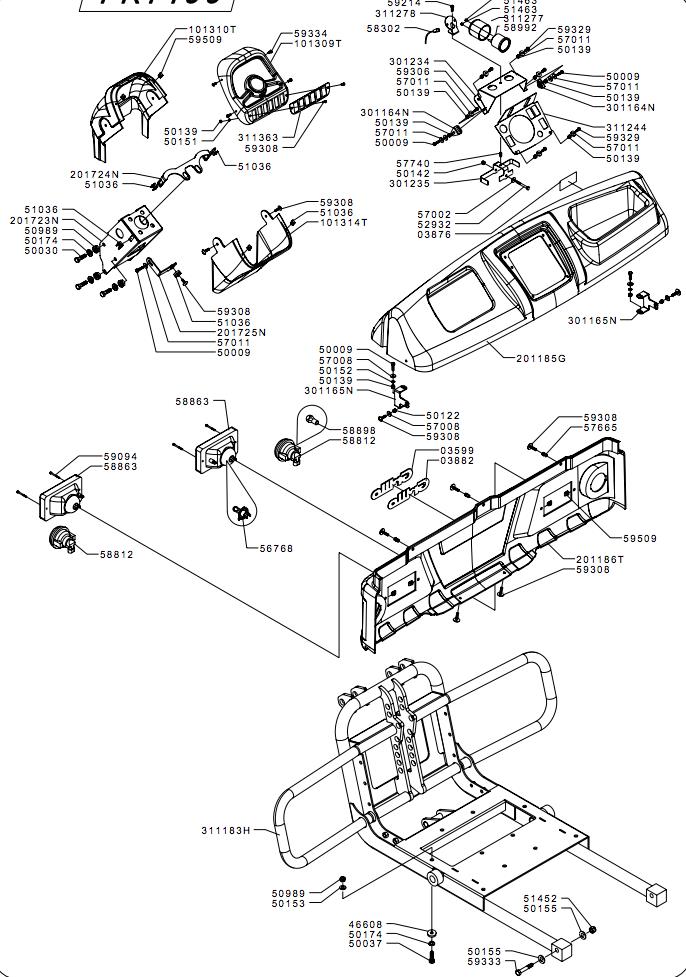

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0359903599STICKER£10.62 Add to
101309T101309TEXTENSION£91.20 Add to
101310T101310TEXTENSION£91.20 Add to
101314T101314TEXTENSION£91.20 Add to
201185G201185GDASHBOARD£286.60 Add to
201186T201186THOOD£311.17 Add to
4660846608WASHER£3.44 Add to
5000950009SCREW£1.42 Add to
5003050030SCREW£1.64 Add to
5003750037SCREW£1.76 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015550155WASHER£1.42 Add to
5017450174WASHER£1.50 Add to
5098950989NUT£1.59 Add to
5103651036CAGE-NUT£1.52 Add to
5145251452NUT£2.53 Add to
5146351463NUT£1.34 Add to
5293252932SCREW£1.64 Add to
5676856768BULB£15.78 Add to
5700257002WASHER£1.36 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5766557665THREADED INSERT£2.41 Add to
5881258812LIGHT£39.31 Add to
5886358863LIGHT£61.36 Add to
5899258992TACHOMETER£267.28 Add to
5921459214SCREW£1.45 Add to
5930659306SCREW£1.46 Add to
5930859308SCREW£1.92 Add to
5932959329SCREW£1.58 Add to
5950959509SPRING£2.27 Add to
