BODY(from sn 129701 from 1986)

Parts list

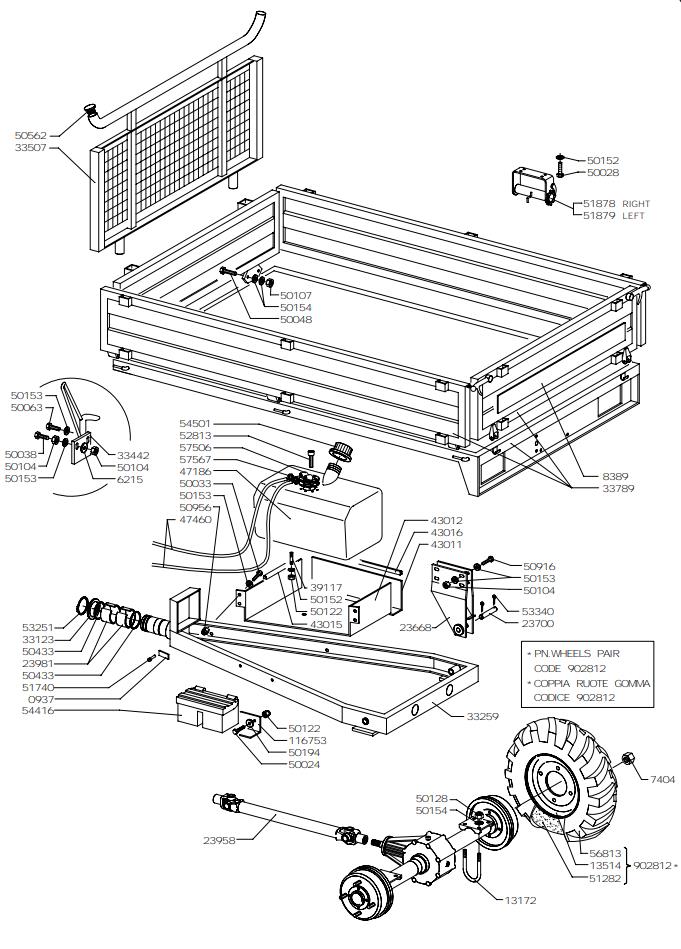

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1317213172ROD£12.02 Add to
2398123981BEARING£81.66 Add to
4718647186TANK£134.68 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5003850038SCREW£1.76 Add to
5004850048SCREW£1.90 Add to
5006350063SCREW£1.61 Add to
5010450104NUT£1.44 Add to
5010750107NUT£1.59 Add to
5012250122NUT£1.44 Add to
5012850128NUT£1.58 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5019450194WASHER£1.60 Add to
50433504330-RING£1.36 Add to
5056250562KNOB£3.43 Add to
5091650916SCREW£2.12 Add to
5095650956NUT£1.47 Add to
5187951879WINCH£34.57 Add to
5281352813SCREW£1.30 Add to
5334053340SPLIT PIN£1.49 Add to
5441654416CASE£24.20 Add to
5450154501CAP£44.43 Add to
5750657506FLOAT£90.38 Add to
5865558655TOOL KIT£173.63 Add to
62156215WASHER£4.15 Add to
74047404NUT£4.59 Add to
