BODY UNTIL SERIAL NO. 524717 (7.13) - 524082 (7.16) - 524720 (7.21) (from sn 521186 to sn 524719 from 2009 to 2010)

Parts list

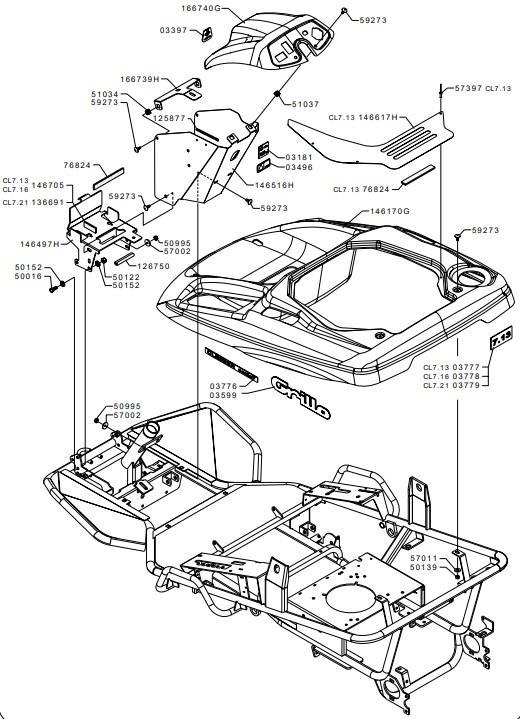

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0318103181STICKER£3.55 Add to
0339703397STICKER£6.30 Add to
0349603496STICKER£2.95 Add to
0359903599STICKER£10.62 Add to
0377603776DECAL SHEET CLIMBER S7£5.39 Add to
126750126750GASKET£2.66 Add to
146497H146497HBATTERY HOLDER£34.55 Add to
166740G166740GDASHBOARD£89.35 Add to
500159500159TOOL KIT£406.78 Add to
5001650016SCREW£18.80 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015250152WASHER£1.30 Add to
5099550995NUT£1.32 Add to
5103451034CAGE-NUT£1.58 Add to
5103751037CAGE NUT£1.66 Add to
5700257002WASHER£1.36 Add to
5701157011WASHER£1.30 Add to
5739757397RIVET£1.41 Add to
7682476824TAPE£3.43 Add to
