BRAKES EQUIPMENT(from s/n 344001 from 2005)

Parts list

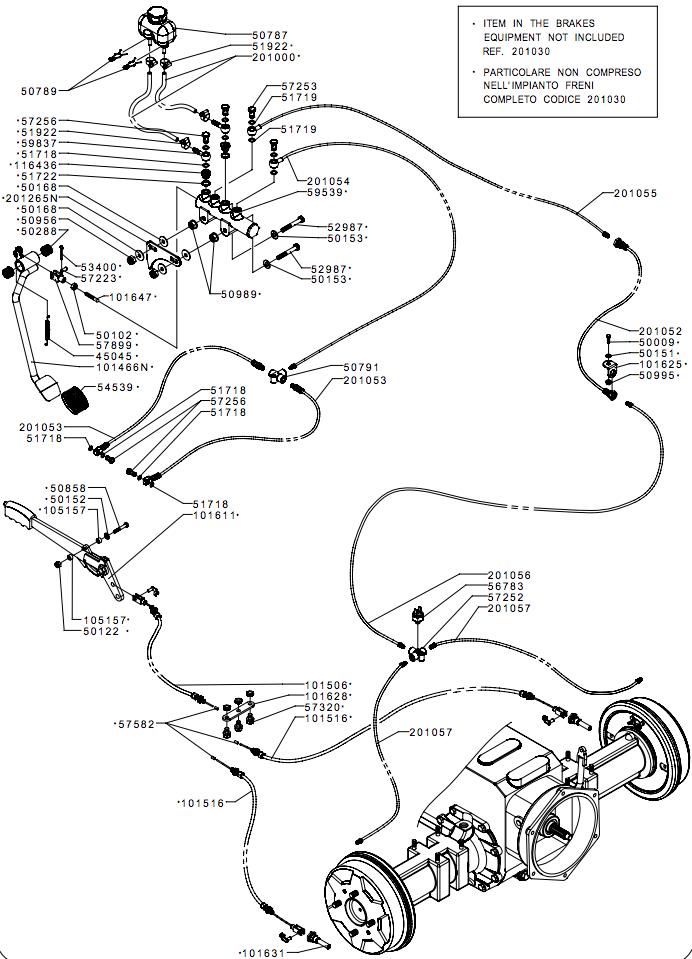

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
101506101506CABLE£40.21 Add to
101516101516CABLE£30.27 Add to
101611101611LEVER£97.39 Add to
105157105157SPACER£5.09 Add to
201000201000PIPE£19.05 Add to
4504545045SPRING£9.65 Add to
5000950009SCREW£1.42 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5016850168WASHER£1.45 Add to
5028850288ROLLER BEARING£33.93 Add to
5078750787OIL-RESERVOIR£28.19 Add to
5085850858SCREW£1.71 Add to
5095650956NUT£1.47 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5171851718WASHER£2.43 Add to
5171951719WASHER£1.59 Add to
5192251922CLAMP£2.99 Add to
5298752987SCREW£2.37 Add to
5340053400SPLIT PIN£1.36 Add to
5453954539DUST CAP£14.01 Add to
5678356783PRESSURE SWITCH£22.84 Add to
5722357223PIN£3.31 Add to
5725257252FITTING£11.57 Add to
5725657256HOLLOW SCREW£6.36 Add to
5732057320CLAMP£4.51 Add to
5789957899YOKE£6.56 Add to
5953959539PUMP£267.12 Add to
5983759837EYE JOINT£5.78 Add to
