CLUTCHES (from sn 102801 to sn 545067 from 1984 to 2011)

Parts list

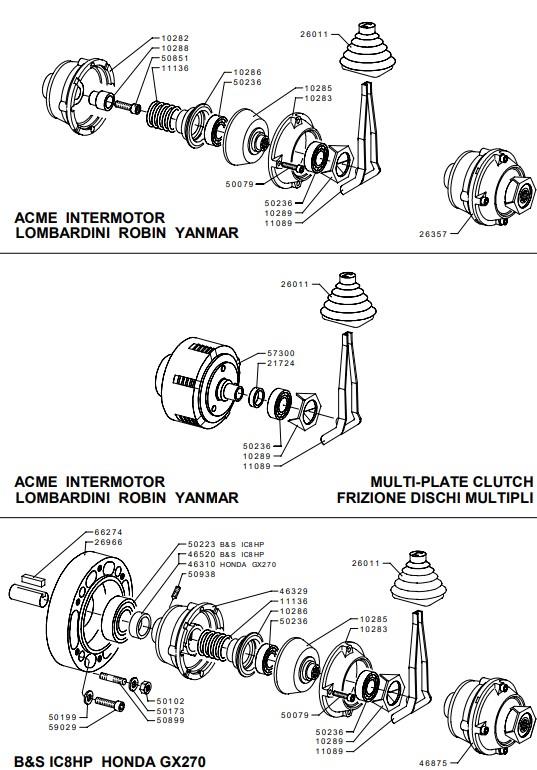

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1028210282CLUTCH HOUSING£44.31 Add to
1028310283BRAKE CONE£47.80 Add to
1028510285LONG LUTCH CONE£38.71 Add to
1028610286END PLATE£7.52 Add to
1028810288WASHER£7.43 Add to
1028910289SMALL PLATE£4.59 Add to
1108911089CLUTCH LEVER£14.07 Add to
1113611136SPRING, CLUTCH£11.15 Add to
2172421724COLLAR£32.27 Add to
2601126011BELLOWS£11.67 Add to
2635726357CONE CLUTCH£173.70 Add to
2696626966FLANGE£91.00 Add to
4631046310SPACER£15.95 Add to
4632946329CLUTCH HOUSING£59.74 Add to
4652046520SPACER£6.85 Add to
4687546875CLUTCH£190.27 Add to
5007950079SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5017350173WASHER£1.34 Add to
5019950199WASHER£1.58 Add to
5023650236BEARING£14.72 Add to
5085150851SCREW£1.58 Add to
5089950899STUD£2.04 Add to
5093850938ALLEN SCREW£1.45 Add to
5229252292BEARING£18.71 Add to
5730057300DISC CLUTCH£271.05 Add to
5902959029SCREW£3.67 Add to
6627466274FEATHER KEY£7.43 Add to
