CONTROLS(from s/n 588524 from 2014)

Parts list

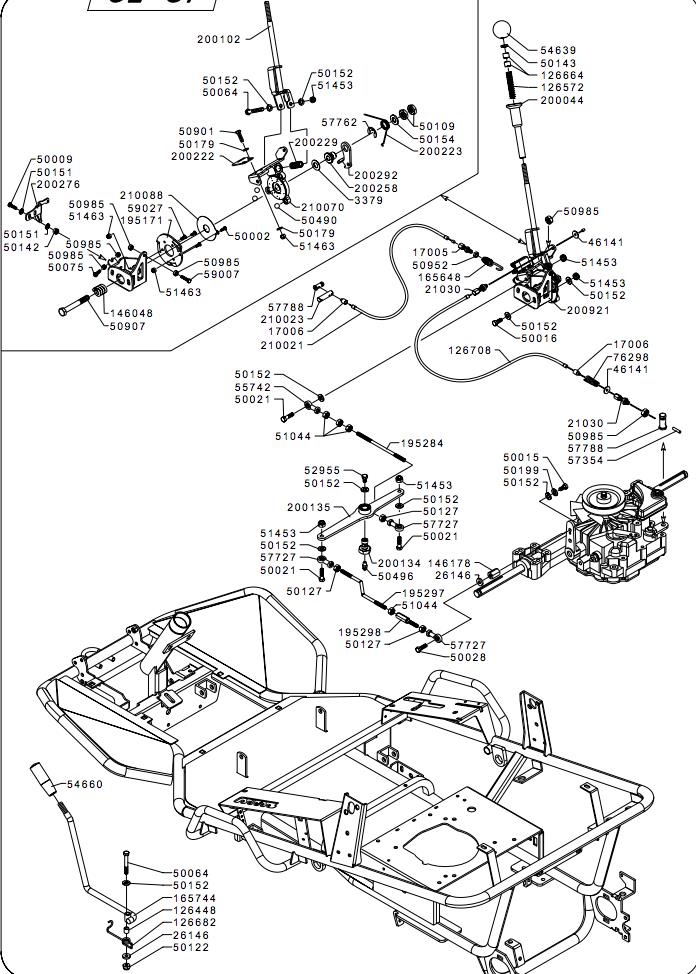

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126448126448SPACER£7.41 Add to
126572126572LEVER SPRING£5.09 Add to
126664126664SPACER£5.34 Add to
126682126682LEVER SPRING£15.36 Add to
126708126708WIRE£12.27 Add to
146048146048LEVER SPRING£8.58 Add to
146178146178EXTENSION£5.43 Add to
165648165648SPRING£22.77 Add to
165744165744LEVER£38.67 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
195171195171DISK£16.70 Add to
195284195284ROD£4.81 Add to
200044200044FLANGE CONNECTION£26.32 Add to
200102200102ROD£24.57 Add to
200134200134PIN£16.62 Add to
200135200135LEVER£44.24 Add to
200222200222BRACKET£8.68 Add to
200223200223SPRING£6.22 Add to
200229200229BUSHING£13.08 Add to
200258200258BUSHING£10.04 Add to
200276200276BRACKET£8.68 Add to
200292200292BRACKET£6.96 Add to
200921200921LEVER£339.29 Add to
210021210021CABLE£8.01 Add to
210023210023PIN£6.39 Add to
210070210070LEVER£87.52 Add to
2103021030ADJUSTER£3.67 Add to
2614626146WASHER£3.64 Add to
33793379SPACER£2.38 Add to
4614146141STICKER PLATE£3.89 Add to
5000250002SCREW£1.37 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5006450064SCREW£1.85 Add to
5007550075SCREW£1.42 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5012750127NUT£1.36 Add to
5014250142NUT£1.32 Add to
5014350143NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017950179WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5049050490BALL£2.36 Add to
5049650496FITTING£1.90 Add to
5090150901SCREW£1.42 Add to
5090750907SCREW£2.90 Add to
5095250952NUT£1.36 Add to
5098550985NUT£1.30 Add to
5104451044NUT£2.54 Add to
5145351453NUT£1.36 Add to
5146351463NUT£1.34 Add to
5295552955SCREW£1.59 Add to
5463954639BALL£6.60 Add to
5466054660KNOB£6.06 Add to
5574255742CYLINDER HEAD£9.70 Add to
5735457354BOOT£1.60 Add to
5772757727CYLINDER HEAD£23.47 Add to
5776257762RING SNAP£1.86 Add to
5778857788CLAMP£3.39 Add to
5900759007SCREW£1.40 Add to
5902759027SCREW£1.41 Add to
7629876298SPRING£3.81 Add to
