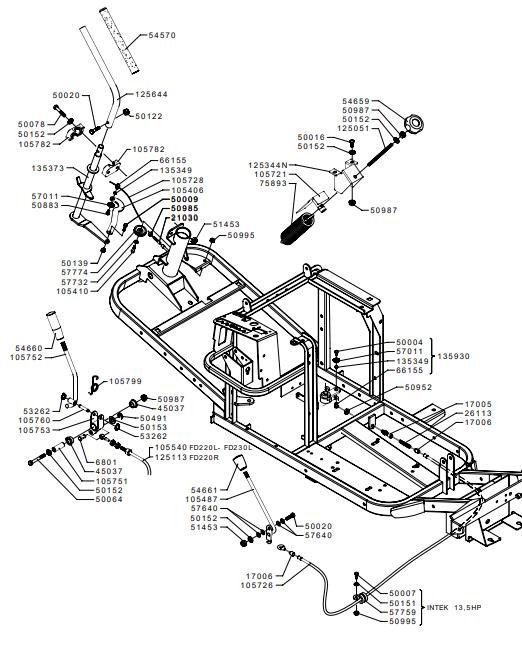

CONTROLS (from sn 303001 to sn 521514 from 2003 to 2009)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105410105410PIN£4.31 Add to
105487105487LEVER£24.67 Add to
105540105540CABLE£38.49 Add to
105726105726BRAKES CABLE£5.46 Add to
105728105728WIRE£6.77 Add to
105751105751SPACER£2.65 Add to
105752105752LEVER£24.24 Add to
105753105753ARTICULATION£26.36 Add to
105760105760PIN£1.93 Add to
105782105782BLOCK£6.90 Add to
105799105799LEVER SPRING£9.82 Add to
125051125051ROD£4.89 Add to
125113125113CABLE£44.36 Add to
125344N125344NSUPPORT£10.18 Add to
135349135349BALL£1.30 Add to
135930135930CLAMP£6.26 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
2103021030ADJUSTER£3.67 Add to
2611326113SPRING£3.64 Add to
4503745037BUSHING£4.36 Add to
5000450004SCREW£1.36 Add to
5000750007SCREW£1.50 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002050020SCREW£1.44 Add to
5006450064SCREW£1.85 Add to
5007850078SCREW£1.69 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5049150491RING SNAP£1.44 Add to
5088350883SCREW£1.44 Add to
5095250952NUT£1.36 Add to
5098550985NUT£1.30 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5326253262CIRCLIP£0.15 Add to
5457054570HANDLE£6.60 Add to
5466054660KNOB£6.06 Add to
5466154661KNOB£2.39 Add to
5701157011WASHER£1.30 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
5773257732SPACER£2.21 Add to
5775957759CLAMP£4.01 Add to
5777457774PULLEY£6.70 Add to
6615566155CONNECTION£4.60 Add to
68016801CONNECTION£9.59 Add to
7589375893SPRING£26.99 Add to
