CONTROLS (from sn 572681 from 2013)

Parts list

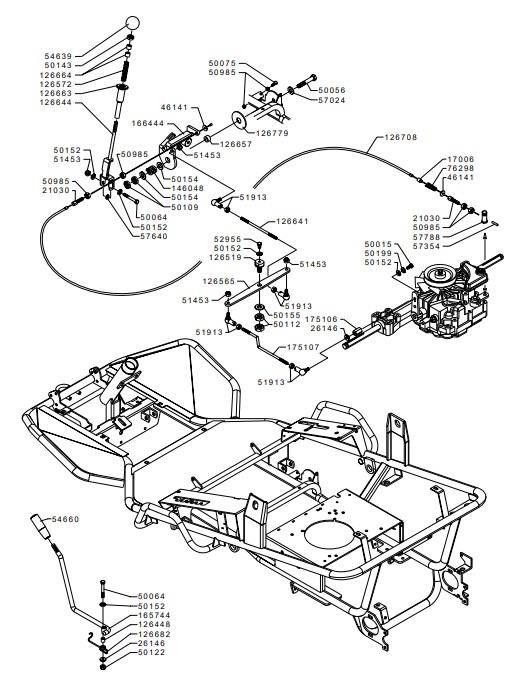

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126448126448SPACER£7.41 Add to
126572126572LEVER SPRING£5.09 Add to
126641126641ROD£4.76 Add to
126644126644ROD£19.83 Add to
126657126657SPACER£4.45 Add to
126663126663FLANGE CONNECTION£24.91 Add to
126664126664SPACER£5.34 Add to
126682126682LEVER SPRING£15.36 Add to
126708126708WIRE£12.27 Add to
126779126779RING£18.30 Add to
146048146048LEVER SPRING£8.58 Add to
165744165744LEVER£38.67 Add to
1700617006BUSHING£51.96 Add to
175107175107ROD£9.89 Add to
2103021030ADJUSTER£3.67 Add to
2614626146WASHER£3.64 Add to
4614146141STICKER PLATE£3.89 Add to
5001550015SCREW£1.44 Add to
5005650056SCREW£2.51 Add to
5006450064SCREW£1.85 Add to
5007550075SCREW£1.42 Add to
5010950109NUT£1.52 Add to
5011250112NUT£1.71 Add to
5012250122NUT£1.44 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5015550155WASHER£1.42 Add to
5019950199WASHER£1.58 Add to
5098550985NUT£1.30 Add to
5145351453NUT£1.36 Add to
5191351913ARTICULATION£11.23 Add to
5295552955SCREW£1.59 Add to
5463954639BALL£6.60 Add to
5466054660KNOB£6.06 Add to
5702457024WASHER£1.49 Add to
5735457354BOOT£1.60 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
5778857788CLAMP£3.39 Add to
7629876298SPRING£3.81 Add to
