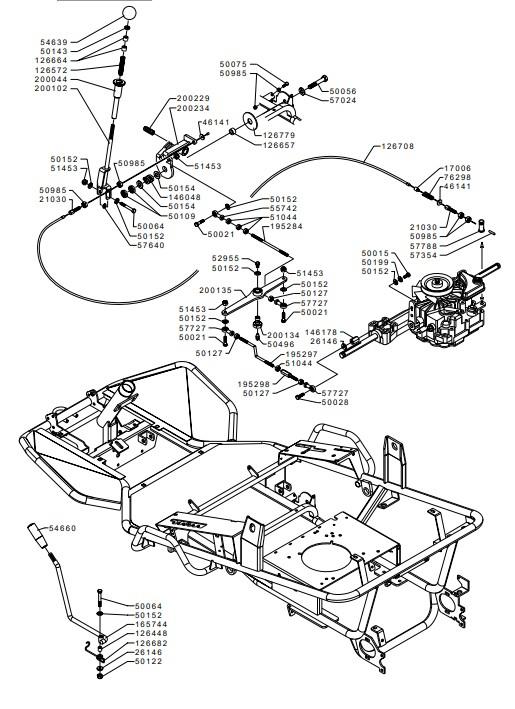

CONTROLS (from sn 585775 to sn 588523 from 2014 to 2014)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126448126448SPACER£7.41 Add to
126572126572LEVER SPRING£5.09 Add to
126657126657SPACER£4.45 Add to
126664126664SPACER£5.34 Add to
126682126682LEVER SPRING£15.36 Add to
126708126708WIRE£12.27 Add to
126779126779RING£18.30 Add to
146048146048LEVER SPRING£8.58 Add to
146178146178EXTENSION£5.43 Add to
165744165744LEVER£38.67 Add to
1700617006BUSHING£51.96 Add to
195284195284ROD£4.81 Add to
200044200044FLANGE CONNECTION£26.32 Add to
200102200102ROD£24.57 Add to
200134200134PIN£16.62 Add to
200135200135LEVER£44.24 Add to
200229200229BUSHING£13.08 Add to
2103021030ADJUSTER£3.67 Add to
2614626146WASHER£3.64 Add to
4614146141STICKER PLATE£3.89 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5005650056SCREW£2.51 Add to
5006450064SCREW£1.85 Add to
5007550075SCREW£1.42 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5012750127NUT£1.36 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5019950199WASHER£1.58 Add to
5049650496FITTING£1.90 Add to
5098550985NUT£1.30 Add to
5104451044NUT£2.54 Add to
5145351453NUT£1.36 Add to
5295552955SCREW£1.59 Add to
5463954639BALL£6.60 Add to
5466054660KNOB£6.06 Add to
5574255742CYLINDER HEAD£9.70 Add to
5702457024WASHER£1.49 Add to
5735457354BOOT£1.60 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
5772757727CYLINDER HEAD£23.47 Add to
5778857788CLAMP£3.39 Add to
7629876298SPRING£3.81 Add to
