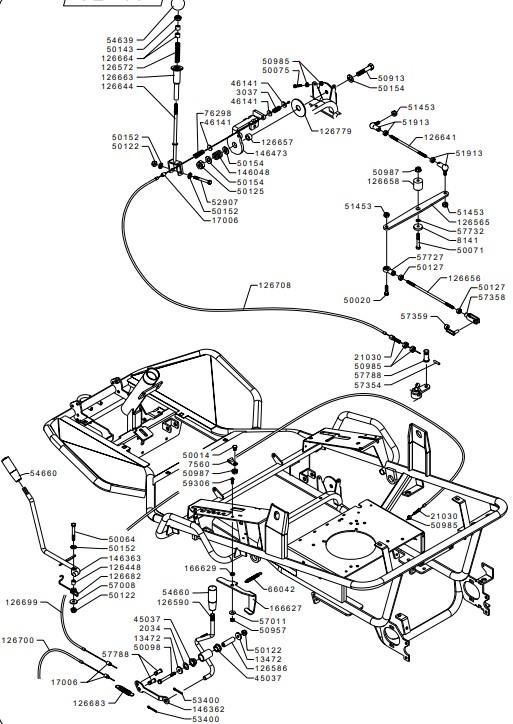

CONTROLS WITH PTO OBSTRUCTION (from sn 372701 to sn 522178 from 2007 to 2009)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126448126448SPACER£7.41 Add to
126572126572LEVER SPRING£5.09 Add to
126590126590LEVER£41.79 Add to
126641126641ROD£4.76 Add to
126644126644ROD£19.83 Add to
126657126657SPACER£4.45 Add to
126663126663FLANGE CONNECTION£24.91 Add to
126664126664SPACER£5.34 Add to
126682126682LEVER SPRING£15.36 Add to
126683126683SPRING£9.65 Add to
126699126699WIRE£6.77 Add to
126700126700BRAKES CABLE£5.62 Add to
126708126708WIRE£12.27 Add to
126779126779RING£18.30 Add to
1347213472WASHER£3.19 Add to
146048146048LEVER SPRING£8.58 Add to
146363146363LEVER£40.40 Add to
146473146473SUPPORT£30.24 Add to
1700617006BUSHING£51.96 Add to
20342034SPACER£3.02 Add to
2103021030ADJUSTER£3.67 Add to
30373037SPRING£4.44 Add to
4503745037BUSHING£4.36 Add to
4614146141STICKER PLATE£3.89 Add to
5001450014SCREW£1.44 Add to
5002050020SCREW£1.44 Add to
5006450064SCREW£1.85 Add to
5007150071SCREW£1.75 Add to
5007550075SCREW£1.42 Add to
5009850098SCREW£1.97 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5012750127NUT£1.36 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5091350913SCREW£2.58 Add to
5095750957NUT£1.34 Add to
5098550985NUT£1.30 Add to
5098750987NUT£2.72 Add to
5145351453NUT£1.36 Add to
5191351913ARTICULATION£11.23 Add to
5290752907SCREW£1.76 Add to
5340053400SPLIT PIN£1.36 Add to
5463954639BALL£6.60 Add to
5466054660KNOB£6.06 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5735457354BOOT£1.60 Add to
5735857358YOKE£6.63 Add to
5735957359CLIP£3.45 Add to
5772757727CYLINDER HEAD£23.47 Add to
5773257732SPACER£2.21 Add to
5778857788CLAMP£3.39 Add to
5930659306SCREW£1.46 Add to
6604266042SPRING£8.52 Add to
75607560FAIRLEAD£5.61 Add to
7629876298SPRING£3.81 Add to
81418141WASHER£3.84 Add to
