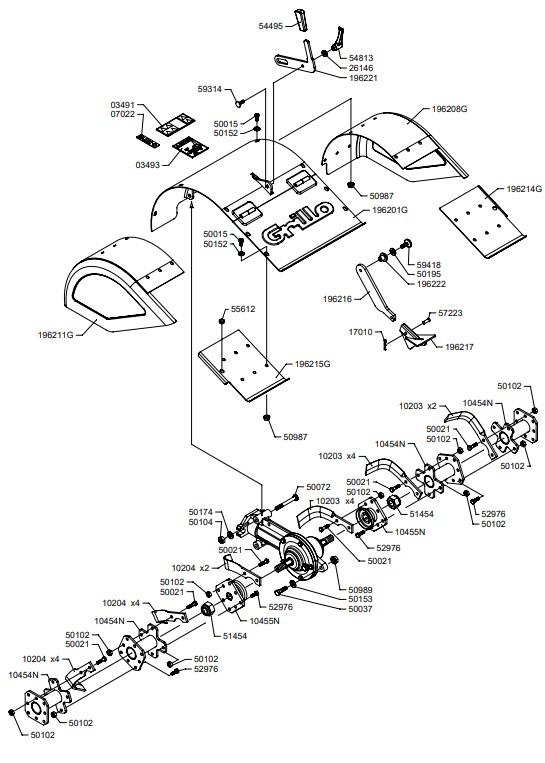

COVER AND COUNTER-ROTATING TILLER (from sn 228001 from 1996)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349103491STICKER£2.95 Add to
0349303493STICKER£2.95 Add to
0702207022STICKER£1.81 Add to
1020310203TINE RH£5.48 Add to
1020410204TINE LH£5.36 Add to
10454N10454NSPACER£40.76 Add to
10455N10455NHUB£44.70 Add to
1701017010SPLIT PIN£1.99 Add to
196201G196201GCENTRAL CASING£287.76 Add to
196208G196208GRIGHT HOOD£96.83 Add to
196211G196211GLEFT HOOD£96.83 Add to
196214G196214GGUARD£28.89 Add to
196215G196215GGUARD£28.89 Add to
196216196216SUPPORT£22.37 Add to
196217196217MOTORHOE SPUR£24.34 Add to
196222196222BUSHING£8.09 Add to
2614626146WASHER£3.64 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5003750037SCREW£1.76 Add to
5007250072SCREW£2.26 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5019550195WASHER£1.45 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5145451454NUT£4.03 Add to
5297652976SCREW£1.49 Add to
5449554495HANDLE£3.31 Add to
5481354813HANDLE£12.42 Add to
5561255612CABLE CHOCK£1.06 Add to
5722357223PIN£3.31 Add to
5931459314SCREW£1.85 Add to
5941859418SCREW£0.63 Add to
