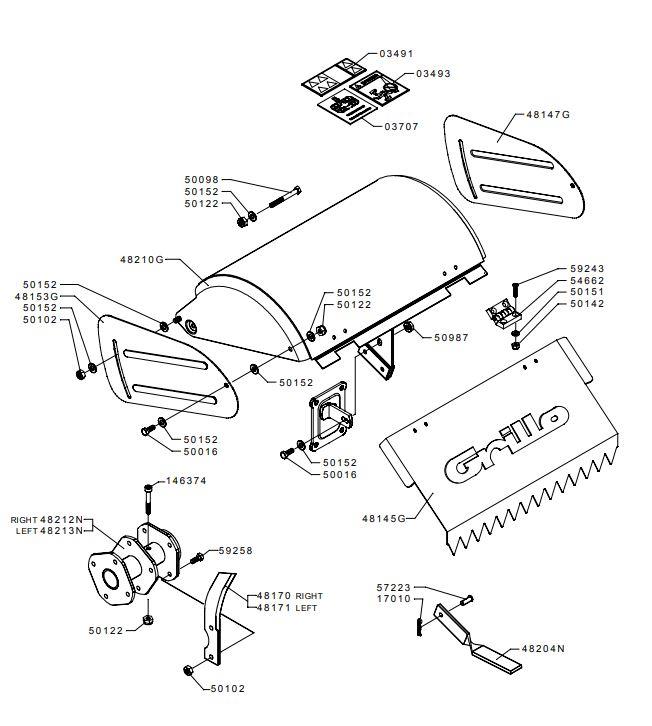

COVER AND TILLER 50 CMS(from sn 305500 from 2005)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349103491STICKER£2.95 Add to
0349303493STICKER£2.95 Add to
0370703707STICKER£5.43 Add to
146374146374SCREW£3.67 Add to
1701017010SPLIT PIN£1.99 Add to
481213N481213NHOES£57.56 Add to
48145G48145GGUARD£49.78 Add to
48147G48147GBODY£20.45 Add to
48153G48153GBODY£19.19 Add to
4817048170TINE RH£5.25 Add to
4817148171TINE LH£5.25 Add to
48204N48204NSLIDE£11.20 Add to
48210G48210GHOOD£246.04 Add to
48212N48212NHOES£57.56 Add to
5001650016SCREW£18.80 Add to
5009850098SCREW£1.97 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5098750987NUT£2.72 Add to
5466254662HINGE£6.85 Add to
5722357223PIN£3.31 Add to
5924359243SCREW£1.40 Add to
5943759437SCREW£2.04 Add to
