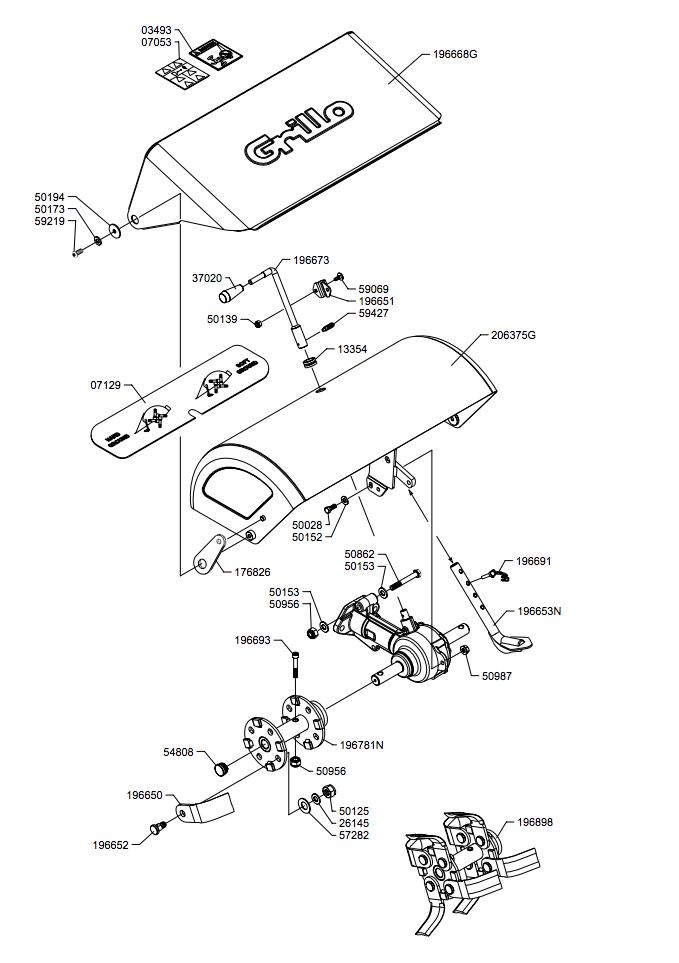

COVER & TINES DOUBLE ROTATION TILLER(from s/n 692483 from 2020)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349303493STICKER£2.95 Add to
0705307053STICKER£5.32 Add to
0712907129STICKER£9.42 Add to
1335413354RING£3.28 Add to
176826176826RUBBER PAD£5.85 Add to
196650196650BLADE RH£6.99 Add to
196651196651BRACKET£4.88 Add to
196652196652BLADE PIN£6.27 Add to
196653N196653NMOTORHOE SPUR£32.27 Add to
196668G196668GGUARD£141.17 Add to
196673196673LEVER£31.40 Add to
196691196691PIN£14.87 Add to
196781N196781NHOES£73.55 Add to
196898196898CPL HOE UNIT (RH/LH)£211.39 Add to
206375G206375GHOOD£234.17 Add to
2614526145SPACER£3.64 Add to
3702037020KNOB£3.93 Add to
5002850028SCREW£1.49 Add to
5012550125NUT£1.58 Add to
5013950139NUT£1.34 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5019450194WASHER£1.60 Add to
5086250862SCREW£2.58 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5480854808PLUG£1.97 Add to
5728257282BELLEVILLE SPRING£2.27 Add to
5906959069SCREW£0.39 Add to
5921959219SCREW£1.60 Add to
5942759427ALLEN SCREW£0.79 Add to
