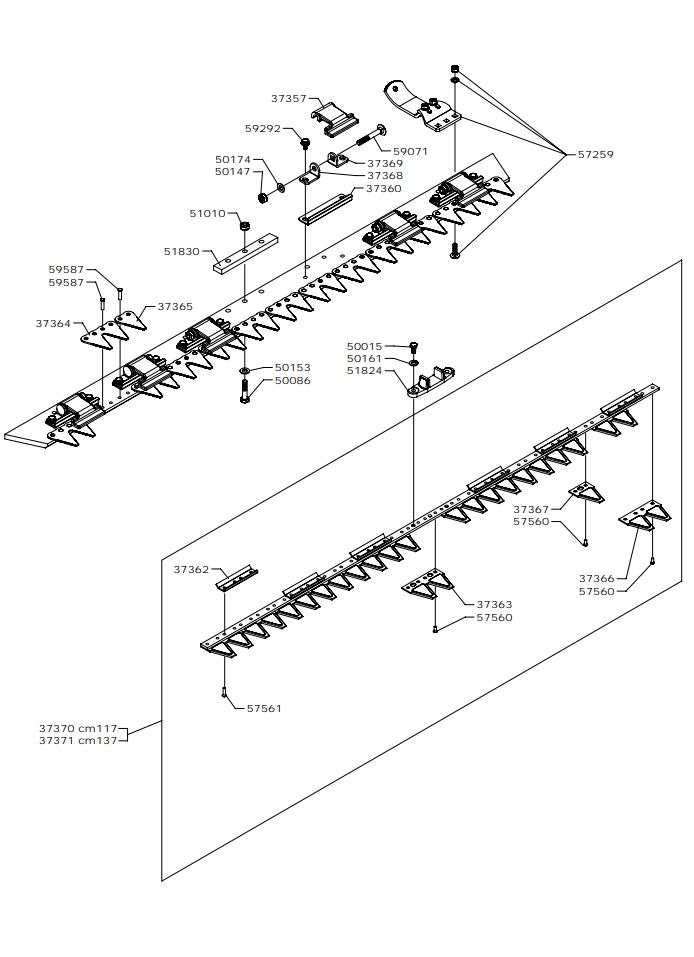

CUTTER BAR - CENTRAL BLADE - ESM 117 - 137 cm(from sn 228001 from 1996)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
3735737357HOLD-DOWN CLIP£22.73 Add to
3736037360SMALL PLATE£10.58 Add to
3736237362BLADE PLATE£6.85 Add to
3736337363SECTION£28.92 Add to
3736437364TOOTH£16.15 Add to
3736537365TOOTH£10.23 Add to
3736637366SECTION£16.29 Add to
3736737367SECTION£9.03 Add to
3737037370CUTTING BLADE£232.81 Add to
3737137371CUTTING BLADE£314.80 Add to
5001550015SCREW£1.44 Add to
5008650086SCREW£1.86 Add to
5014750147NUT£1.44 Add to
5015350153WASHER£1.34 Add to
5016150161WASHER£1.66 Add to
5017450174WASHER£1.50 Add to
5182451824CYLINDER HEAD£89.20 Add to
5183051830SPACER£110.69 Add to
5725957259SLIDE£53.66 Add to
5756057560RIVET£1.37 Add to
5756157561RIVET£1.40 Add to
5907159071SCREW£6.10 Add to
