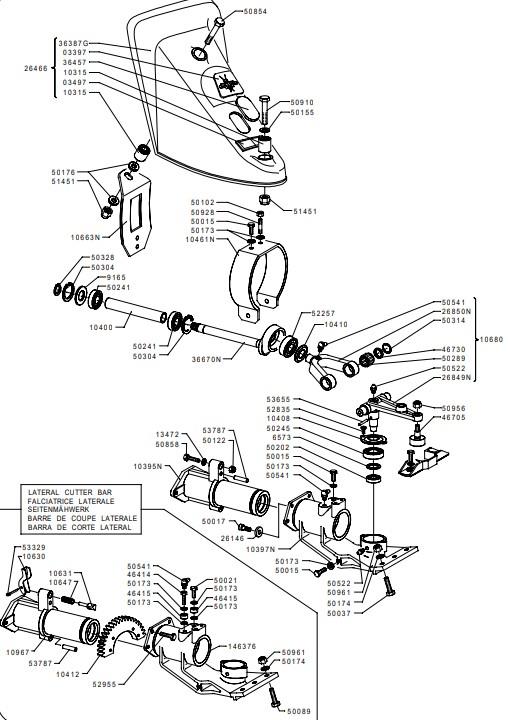

CUTTER BAR CENTRAL UNIT (from sn 228001 from 1996)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0339703397STICKER£6.30 Add to
0349703497STICKER£2.95 Add to
1031510315SILENTBLOC£9.06 Add to
10395N10395NFLANGE CONNECTION£161.71 Add to
10397N10397NSUPPORT FOR CENTRAL BAR£226.70 Add to
1040010400SPACER£9.53 Add to
1040810408COVER£3.59 Add to
1041010410GUARD£4.47 Add to
1041210412SECTOR£69.39 Add to
10461N10461NGUARD£18.36 Add to
1063010630LEVER£19.45 Add to
1063110631PIN£31.71 Add to
1064710647HUB CAP£19.40 Add to
10663N10663NSUPPORT£21.07 Add to
1068010680CRANK£225.62 Add to
1347213472WASHER£3.19 Add to
2614626146WASHER£3.64 Add to
2646626466GRASS CONVEYOR£108.08 Add to
26849N26849NCRANK£119.32 Add to
26850N26850NYOKE£98.10 Add to
36387G36387GGRASS CONVEYOR£67.13 Add to
3645736457PLUG£4.07 Add to
36670N36670NSHAFT£99.64 Add to
4641546415SPACER£3.73 Add to
4670546705PIN£18.45 Add to
4673046730SPACER£3.02 Add to
5001550015SCREW£1.44 Add to
5001750017SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5003750037SCREW£1.76 Add to
5008950089SCREW£1.85 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5015550155WASHER£1.42 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017650176WASHER£1.60 Add to
5020250202BEARING£8.33 Add to
5024550245BEARING£16.54 Add to
5028950289BEARING£13.32 Add to
5030450304CIRCLIP£2.09 Add to
5031450314CIRCLIP£1.45 Add to
5032850328CIRCLIP£1.44 Add to
5052250522FITTING£2.27 Add to
5054150541FITTING£3.75 Add to
5085450854SCREW£2.66 Add to
5091050910SCREW£3.01 Add to
5092850928ALLEN SCREW£2.62 Add to
5095650956NUT£1.47 Add to
5096150961NUT£1.61 Add to
5145151451NUT£2.43 Add to
5225752257BEARING£25.14 Add to
5295552955SCREW£1.59 Add to
5332953329SPLIT PIN£1.42 Add to
5365553655SPRING PIN£1.42 Add to
5378753787SPRING PIN£1.89 Add to
65736573SPACER£2.70 Add to
91659165SPACER£3.41 Add to
