CUTTER DECK_FRAME & ARMS(from s/n 579250 to s/n 591032 from 2014 to 2015)

Parts list

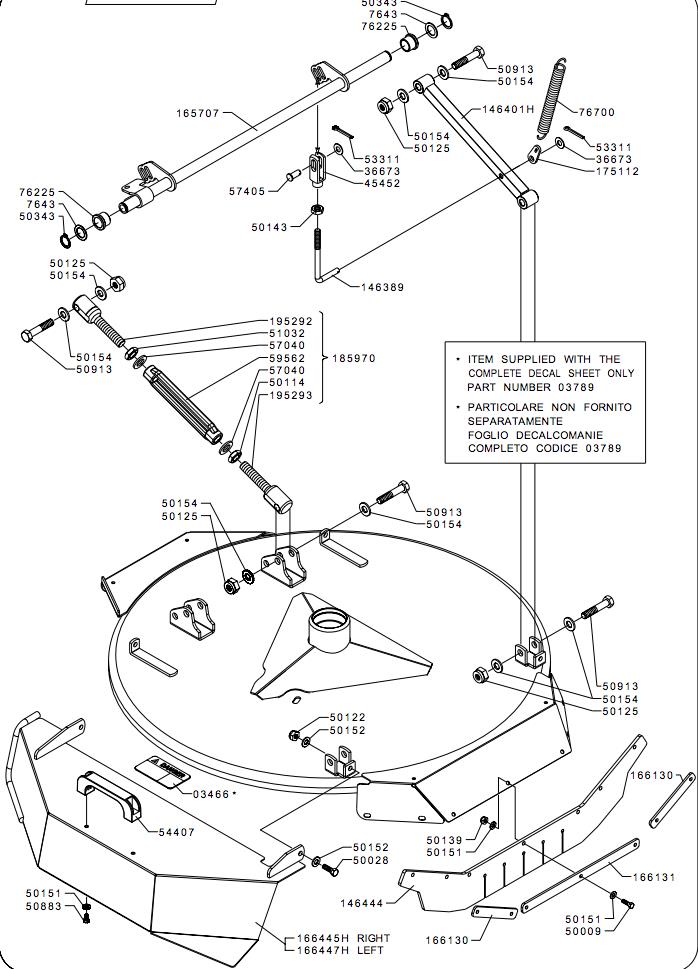

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0378903789STICKER£15.79 Add to
146389146389ROD£10.09 Add to
146444146444GUARD PLATE£16.97 Add to
165707165707CROSSBAR£58.10 Add to
166130166130BRACKET£4.56 Add to
166131166131BRACKET£5.85 Add to
166445H166445HMOWER DECK RIGHT DOOR£118.69 Add to
166447H166447HMOWER DECK LEFT DOOR£118.69 Add to
175112175112SMALL PLATE£4.64 Add to
3667336673SPACER£4.07 Add to
4545245452YOKE£18.31 Add to
5000950009SCREW£1.42 Add to
5002850028SCREW£1.49 Add to
5011450114NUT£1.85 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5013950139NUT£1.34 Add to
5014350143NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5034350343CIRCLIP£1.42 Add to
5088350883SCREW£1.44 Add to
5091350913SCREW£2.58 Add to
5103251032NUT£4.36 Add to
5331153311SPLIT PIN£1.40 Add to
5440754407HANDLE£9.75 Add to
5704057040WASHER£1.68 Add to
5740557405PIN£4.17 Add to
5866658666TOOL KIT£45.17 Add to
5956259562ROD£20.01 Add to
7622576225BUSHING£6.12 Add to
76437643SPACER£2.71 Add to
7670076700SPRING£7.90 Add to
