CUTTER DOUBLE BAR UNIT IN OIL BATH (from sn 228001 from 1996)

Parts list

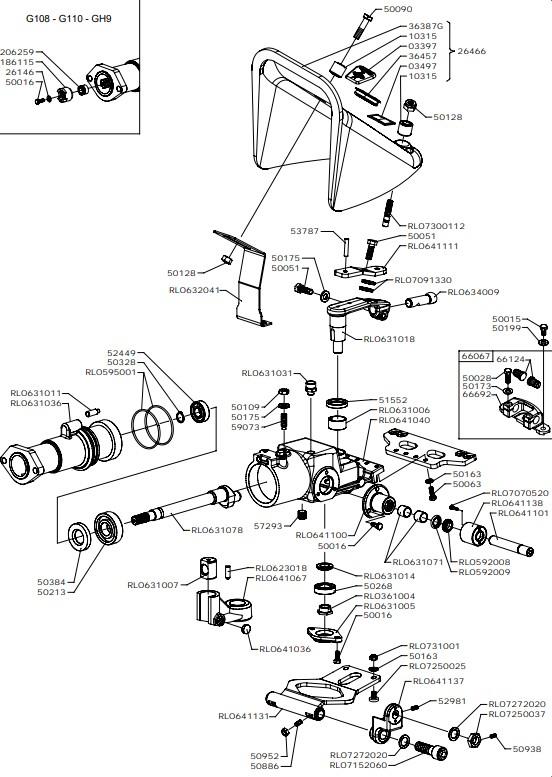

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0339703397STICKER£6.30 Add to
0349703497STICKER£2.95 Add to
1031510315SILENTBLOC£9.06 Add to
186115186115COUPLING£44.14 Add to
2614626146WASHER£3.64 Add to
2646626466GRASS CONVEYOR£108.08 Add to
36387G36387GGRASS CONVEYOR£67.13 Add to
3645736457PLUG£4.07 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5005150051SCREW£2.05 Add to
5006350063SCREW£1.61 Add to
5009050090SCREW£2.09 Add to
5010950109NUT£1.52 Add to
5012850128NUT£1.58 Add to
5016350163WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5017550175WASHER£1.42 Add to
5021350213BEARING£35.25 Add to
5026850268BEARING£12.73 Add to
503034503034CONNECTION£98.25 Add to
5032850328CIRCLIP£1.44 Add to
5038450384SEAL RING£7.16 Add to
5088650886RING£0.76 Add to
5093850938ALLEN SCREW£1.45 Add to
5095250952NUT£1.36 Add to
5155251552SEAL RING£7.40 Add to
5244952449BEARING£11.58 Add to
5298152981ALLEN SCREW£1.49 Add to
5378753787SPRING PIN£1.89 Add to
5907359073ALLEN SCREW£6.22 Add to
6612466124PLATE£16.27 Add to
RLO592008RLO592008RING£26.18 Add to
RLO592009RLO592009AXIAFLON SEALRING Ø20£40.94 Add to
RLO631071RLO631071BUSHING 20X20£2.55 Add to
RLO641036RLO641036INSIDE TABLET£15.38 Add to
RLO641067RLO641067INTERNAL ARM£172.47 Add to
RLO641100RLO641100SIDE SUPPORT£70.11 Add to
RLO641101RLO641101GUIDE OF TRACTION Ø20£32.96 Add to
RLO641131RLO641131LOWER KNIFE HEAD£197.96 Add to
RLO641137RLO641137SIDE JUNCTION£101.35 Add to
RLO641138RLO641138PROTECTION BUCKLE£64.46 Add to
RLO7070520RLO7070520SCREW£0.60 Add to
RLO7250037RLO7250037SPECIAL NUT M20X1,5£9.79 Add to
RLO7272020RLO7272020WASHER NORDLOCK Ø20£8.01 Add to
RLO7310001RLO7310001SELF LOCKING NUT£1.35 Add to
