DECK 78 cm - BLADES & TRANSMISSION(from s/n 304133 from 2003)

Parts list

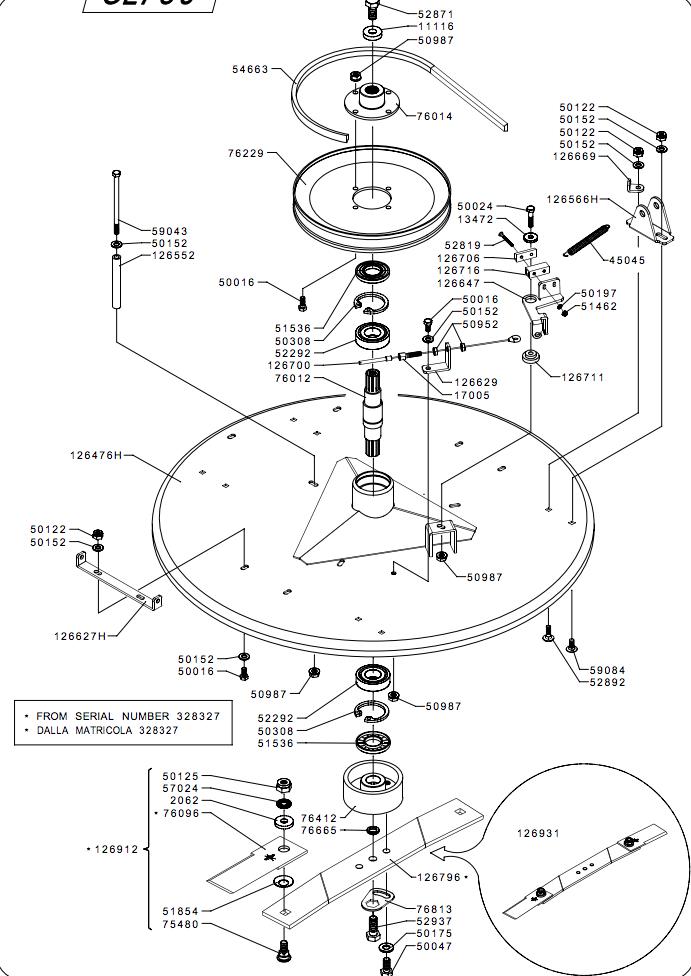

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1111611116WASHER£2.91 Add to
126476H126476HPLATE£380.56 Add to
126552126552GUARD£8.93 Add to
126627H126627HBRACKET£16.10 Add to
126629126629BRACKET£6.10 Add to
126700126700BRAKES CABLE£5.62 Add to
126711126711BUSHING£10.24 Add to
126912126912CUTTING BLADE£69.96 Add to
1347213472WASHER£3.19 Add to
1700517005ADJUSTER£5.27 Add to
20622062WASHER£3.77 Add to
4504545045SPRING£9.65 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5004750047SCREW£1.78 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5015250152WASHER£1.30 Add to
5017550175WASHER£1.42 Add to
5019750197WASHER£1.29 Add to
5030850308CIRCLIP£2.27 Add to
5095250952NUT£1.36 Add to
5098750987NUT£2.72 Add to
5146251462NUT£1.34 Add to
5153651536SEAL RING£7.35 Add to
5185451854BELLEVILLE SPRING£2.60 Add to
5229252292BEARING£18.71 Add to
5281952819SCREW£1.41 Add to
5287152871SCREW£2.72 Add to
5293752937SCREW£2.38 Add to
5466354663BELT£100.13 Add to
5702457024WASHER£1.49 Add to
5904359043SCREW£2.15 Add to
5908459084SCREW£1.69 Add to
7548075480BLADE PIN£11.58 Add to
7601476014HUB£66.77 Add to
7666576665SPACER£6.48 Add to
7681376813SMALL PLATE£5.24 Add to
