DIFFERENTIAL LOCK(from s/n 304133 from 2003)

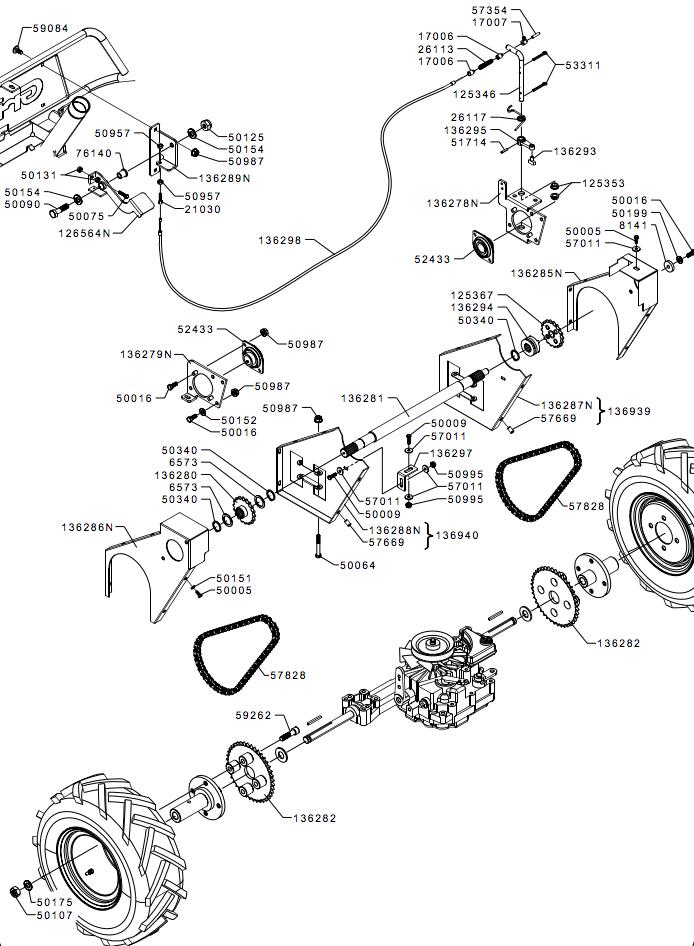

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
125346125346LEVER£37.51 Add to
125353125353NYLON BUSHING£8.42 Add to
125367125367PINION£58.36 Add to
136280136280PINION£37.51 Add to
136281136281SHAFT£121.46 Add to
136282136282RING GEAR£68.90 Add to
136293136293DISK£4.66 Add to
136294136294COUPLING£28.27 Add to
136295136295LEVER£12.55 Add to
1700617006BUSHING£51.96 Add to
1700717007CLAMP£2.61 Add to
2103021030ADJUSTER£3.67 Add to
2611326113SPRING£3.64 Add to
2611726117SPRING£3.64 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5006450064SCREW£1.85 Add to
5007550075SCREW£1.42 Add to
5009050090SCREW£2.09 Add to
5010750107NUT£1.59 Add to
5012550125NUT£1.58 Add to
5013150131NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017550175WASHER£1.42 Add to
5019950199WASHER£1.58 Add to
5034050340CIRCLIP£1.45 Add to
5095750957NUT£1.34 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5171451714PIN£1.61 Add to
5243352433BEARING£39.65 Add to
5331153311SPLIT PIN£1.40 Add to
5701157011WASHER£1.30 Add to
5735457354BOOT£1.60 Add to
5766957669THREADED INSERT£1.64 Add to
5782857828DRIVE CHAIN£33.68 Add to
5908459084SCREW£1.69 Add to
5926259262SCREW£2.03 Add to
65736573SPACER£2.70 Add to
7614076140NYLON BUSHING£6.83 Add to
81418141WASHER£3.84 Add to
