DIFFERENTIAL LOCK (from sn 670355 to sn 689065 from 2018 to 2020)

Parts list

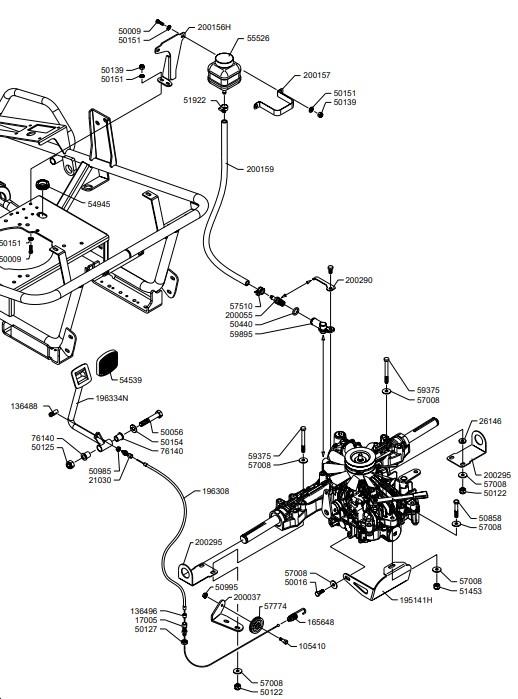

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105410105410PIN£4.31 Add to
136488136488CLAMP£3.75 Add to
136496136496BOOT£2.53 Add to
165648165648SPRING£22.77 Add to
1700517005ADJUSTER£5.27 Add to
195141H195141HGUARD£31.44 Add to
196308196308WIRE£8.62 Add to
196334N196334NPEDAL£44.30 Add to
200055200055FITTING£16.12 Add to
200156H200156HSUPPORT£14.33 Add to
200157200157CLAMP£7.16 Add to
200159200159PIPE£7.16 Add to
200290200290BRACKET£3.58 Add to
200295200295BRACKET£7.16 Add to
2103021030ADJUSTER£3.67 Add to
2614626146WASHER£3.64 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5005650056SCREW£2.51 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5012750127NUT£1.36 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015450154WASHER£1.37 Add to
5044050440O-RING£0.23 Add to
5085850858SCREW£1.71 Add to
5098550985NUT£1.30 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5192251922CLAMP£2.99 Add to
5453954539DUST CAP£14.01 Add to
5494554945CABLE CHOCK£1.81 Add to
5552655526TANK£42.98 Add to
5700857008WASHER£1.35 Add to
5751057510CLAMP£0.38 Add to
5777457774PULLEY£6.70 Add to
5937559375SCREW£2.46 Add to
5989559895CONNECTION£8.29 Add to
7614076140NYLON BUSHING£6.83 Add to
