DIRECTION LEVERS(from s/n 536089 from 2010)

Parts list

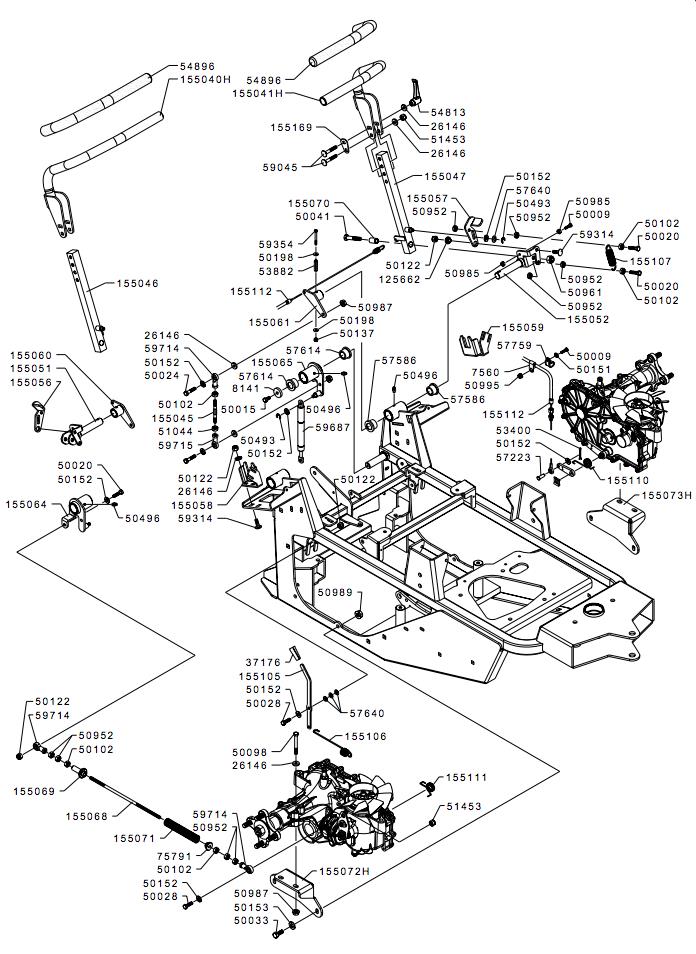

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
125662125662BUSHING£3.34 Add to
155040H155040HLEVER£54.89 Add to
155041H155041HLEVER£54.89 Add to
155045155045ROD£14.75 Add to
155046155046ARM£58.34 Add to
155047155047ARM£58.34 Add to
155051155051PIN£47.96 Add to
155052155052PIN£44.49 Add to
155056155056SMALL PLATE£7.84 Add to
155057155057SMALL PLATE£8.00 Add to
155058155058SUPPORT£21.07 Add to
155060155060TRANSMISSION£24.08 Add to
155061155061TRANSMISSION£24.08 Add to
155064155064TRANSMISSION£51.41 Add to
155065155065TRANSMISSION£51.41 Add to
155068155068ROD£22.02 Add to
155069155069BUSHING£13.26 Add to
155071155071SPRING£11.64 Add to
155105155105LEVER£8.54 Add to
155106155106SPRING£11.64 Add to
155107155107SPRING£11.64 Add to
155110155110SPRING£11.64 Add to
155111155111SPRING£11.64 Add to
155112155112BRAKES CABLE£20.61 Add to
155169155169SMALL PLATE£3.31 Add to
2614626146WASHER£3.64 Add to
3717637176KNOB£3.79 Add to
5000950009SCREW£1.42 Add to
5001550015SCREW£1.44 Add to
5002050020SCREW£1.44 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5003350033SCREW£1.66 Add to
5009850098SCREW£1.97 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013750137NUT£1.30 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5019850198WASHER£2.82 Add to
5049350493RING SNAP£1.30 Add to
5049650496FITTING£1.90 Add to
5095250952NUT£1.36 Add to
5096150961NUT£1.61 Add to
5098550985NUT£1.30 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5104451044NUT£2.54 Add to
5145351453NUT£1.36 Add to
5340053400SPLIT PIN£1.36 Add to
5388253882SPRING PIN£1.58 Add to
5481354813HANDLE£12.42 Add to
5722357223PIN£3.31 Add to
5758657586BUSHING£4.01 Add to
5761457614BUSHING£8.74 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
5775957759CLAMP£4.01 Add to
5904559045SCREW£1.94 Add to
5931459314SCREW£1.85 Add to
5935459354SCREW£1.42 Add to
5968759687SHOCKABSORBER£117.14 Add to
5971459714CYLINDER HEAD£25.48 Add to
5971559715CYLINDER HEAD£25.48 Add to
75607560FAIRLEAD£5.61 Add to
7579175791SPRING GUIDE£3.19 Add to
81418141WASHER£3.84 Add to
