DOUBLE BLADE CUTTER BAR 117CM (from sn 228001 from 1996)

Parts list

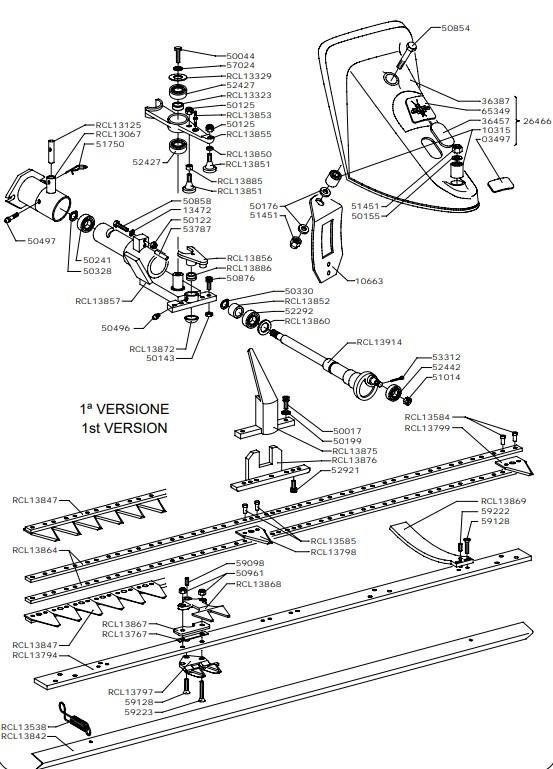

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349703497STICKER£2.95 Add to
1031510315SILENTBLOC£9.06 Add to
1347213472WASHER£3.19 Add to
2646626466GRASS CONVEYOR£108.08 Add to
3645736457PLUG£4.07 Add to
5001750017SCREW£1.44 Add to
5004450044SCREW£1.90 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5014350143NUT£1.44 Add to
5015550155WASHER£1.42 Add to
5017650176WASHER£1.60 Add to
5019950199WASHER£1.58 Add to
5032850328CIRCLIP£1.44 Add to
5033050330CIRCLIP£1.76 Add to
5049650496FITTING£1.90 Add to
5049750497FITTING£2.70 Add to
5085450854SCREW£2.66 Add to
5085850858SCREW£1.71 Add to
5087650876SCREW£1.66 Add to
5096150961NUT£1.61 Add to
5101451014NUT£8.11 Add to
5145151451NUT£2.43 Add to
5175051750SPLIT PIN£1.89 Add to
5229252292BEARING£18.71 Add to
5242752427BEARING£22.82 Add to
5244252442BEARING£27.81 Add to
5292152921SCREW£1.69 Add to
5331253312SPLIT PIN£1.36 Add to
5378753787SPRING PIN£1.89 Add to
5702457024WASHER£1.49 Add to
5909859098ALLEN SCREW£1.03 Add to
5912859128SCREW£1.71 Add to
5922259222ALLEN SCREW£0.50 Add to
5922359223SCREW£2.27 Add to
6534965349STICKER£5.61 Add to
RCL13067RCL13067CONNECTION£210.65 Add to
RCL13125RCL13125PIN£19.73 Add to
RCL13323RCL13323SPACER£22.96 Add to
RCL13329RCL13329WASHER£7.32 Add to
RCL13538RCL13538SPRING£10.67 Add to
RCL13584RCL13584RIVET£1.85 Add to
RCL13585RCL13585DOWEL PIN£4.95 Add to
RCL13767RCL13767SPACER£11.33 Add to
RCL13794RCL13794SICKLE BAR£265.46 Add to
RCL13797RCL13797TOOTH£44.74 Add to
RCL13798RCL13798SECTION£5.77 Add to
RCL13842RCL13842GUARD£34.99 Add to
RCL13847RCL13847CUTTING BLADE£143.98 Add to
RCL13850RCL13850ROLLER£27.68 Add to
RCL13851RCL13851PIN£33.97 Add to
RCL13852RCL13852SPACER£9.10 Add to
RCL13853RCL13853SCREW£33.44 Add to
RCL13855RCL13855CONNECTING ROD£241.86 Add to
RCL13857RCL13857SUPPORT£373.98 Add to
RCL13860RCL13860DISK£8.14 Add to
RCL13864RCL13864ROD£59.91 Add to
RCL13867RCL13867CUTTERBAR WEAR PLATE£9.34 Add to
RCL13875RCL13875CONNECTION£76.12 Add to
RCL13876RCL13876CONNECTION£83.17 Add to
RCL13885RCL13885ROLLER£32.70 Add to
RCL13886RCL13886BUSHING£29.24 Add to
RCL13914RCL13914SHAFT£215.12 Add to
RCL14153RCL14153SLIDE£40.81 Add to
