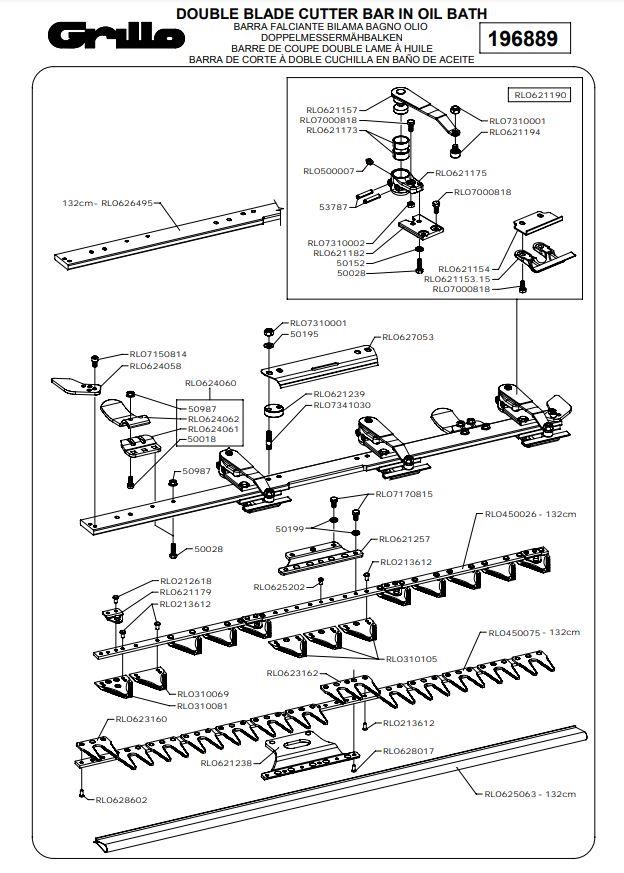

DOUBLE BLADE CUTTER BAR IN OIL BATH (from sn 585297 from 2014

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
5001850018SET SCREWN/A POA
5002850028SCREW£1.49 Add to
5015250152WASHER£1.30 Add to
5019550195WASHER£1.45 Add to
5019950199WASHER£1.58 Add to
5098750987NUT£2.72 Add to
5378753787SPRING PIN£1.89 Add to
RLO212618RLO212618RIVET£0.15 Add to
RLO213612RLO213612RIVET£0.39 Add to
RLO310069RLO310069SECTION£10.70 Add to
RLO310081RLO310081SECTION 7 HOLES£12.22 Add to
RLO310105RLO310105SECTION£12.21 Add to
RLO450026RLO450026UPPER KNIFE£396.40 Add to
RLO450075RLO450075LOWER KNIFE£346.87 Add to
RLO621179RLO621179PLATE WITH PIN K£14.62 Add to
RLO621190RLO621190HOLD-DOWN CLIP£162.44 Add to
RLO621194RLO621194KNIFE GUIDE£25.59 Add to
RLO621238RLO621238LOWER KNIFE HEAD 132£103.14 Add to
RLO621257RLO621257UPPER PLATE£164.05 Add to
RLO623160RLO623160FINGER PLATE£39.44 Add to
RLO623162RLO623162FINGER PLATE£55.68 Add to
RLO624058RLO624058SIDE PROTECTION£10.72 Add to
RLO624060RLO624060SKID PLATE CPL£28.30 Add to
RLO624061RLO624061SKID PLATE SUPPORT£13.60 Add to
RLO624062RLO624062SKID PLATE£13.49 Add to
RLO625063RLO625063KNIFE PROTECTION 132£19.03 Add to
RLO625202RLO625202PIN£1.55 Add to
RLO627053RLO627053PROTECTION PLATE£40.35 Add to
RLO628017RLO628017RIVET£3.07 Add to
RLO7310001RLO7310001SELF LOCKING NUT£1.35 Add to
