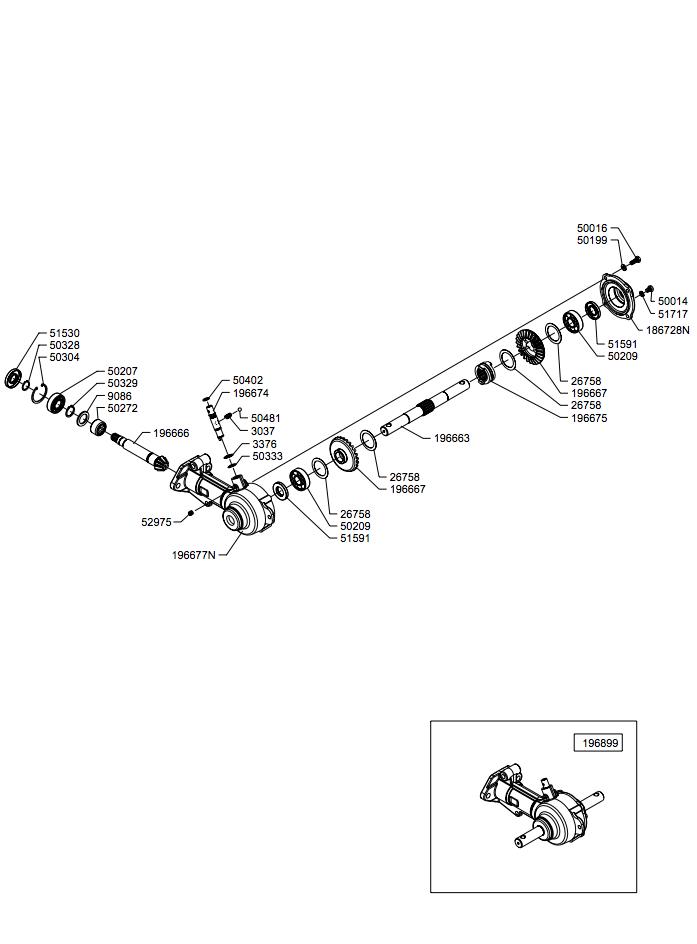

DOUBLE ROTATION TILLER GEARBOX(from s/n 692483 from 2020)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
186728N186728NCOVER£62.79 Add to
196663196663SHAFT£89.37 Add to
196666196666PINION£104.67 Add to
196667196667RING GEAR£120.32 Add to
196674196674SELECTOR£28.60 Add to
196675196675COUPLING£51.55 Add to
196677N196677NGEARBOX£263.35 Add to
196899196899ROTARY HOE CENTRAL ASSEMBLY£719.36 Add to
2675826758SPACER£3.19 Add to
30373037SPRING£4.44 Add to
33763376SPACER£3.02 Add to
5001450014SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5019950199WASHER£1.58 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5027250272ROLLER BEARING£54.89 Add to
5030450304CIRCLIP£2.09 Add to
5032850328CIRCLIP£1.44 Add to
5032950329CIRCLIP£1.68 Add to
5033350333CIRCLIP£1.37 Add to
5040250402O-RING£1.52 Add to
5048150481BALL£1.71 Add to
5153051530SEAL RING£5.33 Add to
5159151591SEAL RING£3.48 Add to
5171751717WASHER£2.43 Add to
5297552975ALLEN SCREW£1.56 Add to
90869086SPACER£3.69 Add to
