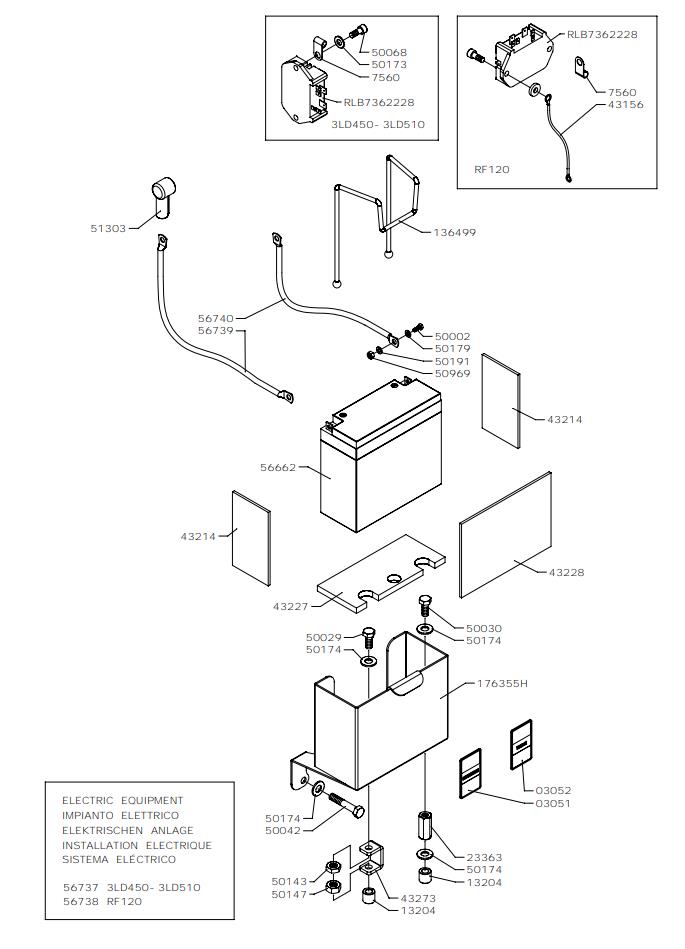

E-STARTER(from s/n 200251 from 1991)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0305103051STICKER£5.19 Add to
0305203052STICKER£5.62 Add to
1320413204SPACER£3.52 Add to
136499136499RUBBER BAND£6.12 Add to
176355H176355HBATTERY BOX£38.59 Add to
2336323363NUT£5.85 Add to
4321443214INSULATOR£4.38 Add to
4322743227INSULATOR£5.43 Add to
4322843228INSULATOR£5.43 Add to
4327343273BRACKET£6.92 Add to
5000250002SCREW£1.37 Add to
5002950029SCREW£1.61 Add to
5003050030SCREW£1.64 Add to
5004250042SCREW£1.97 Add to
5006850068SCREW£1.52 Add to
5014350143NUT£1.44 Add to
5014750147NUT£1.44 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017950179WASHER£1.30 Add to
5096950969NUT£1.30 Add to
5130351303INSULATING CAP£2.81 Add to
5666256662DRY BATTERY£128.27 Add to
5673756737HARNESS, WIRING£34.32 Add to
5673956739CABLES BATTERY BOOSTER£20.56 Add to
5674056740CABLES BATTERY BOOSTER£18.77 Add to
75607560FAIRLEAD£5.61 Add to
RLB7362228RLB7362228ADJUSTER£154.31 Add to
