ELECTRIC EQUIPMENT

Parts list

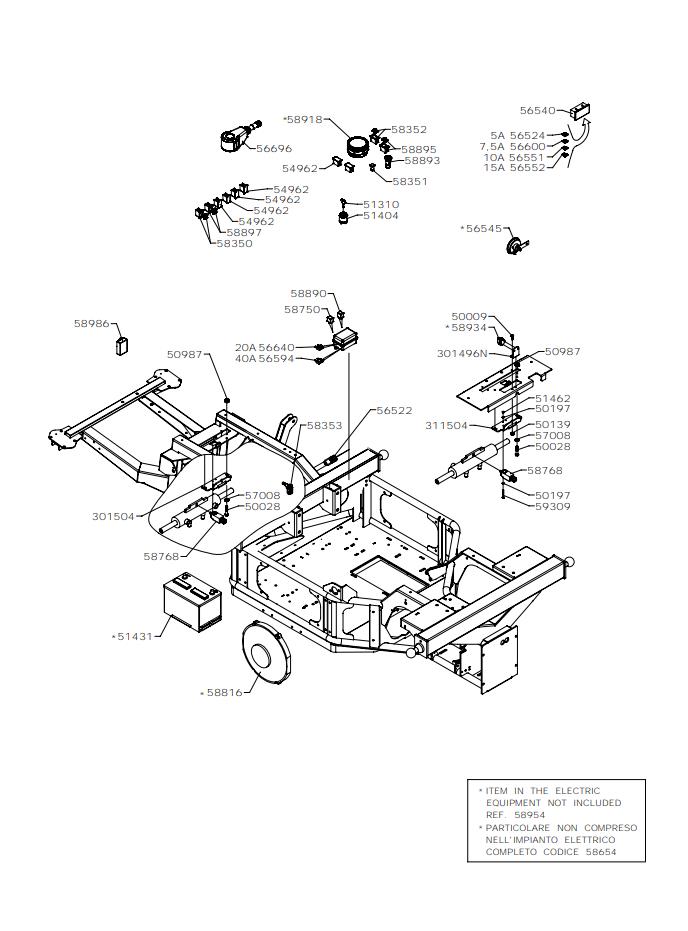

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
5000950009SCREW£1.42 Add to
5002850028SCREW£1.49 Add to
5013950139NUT£1.34 Add to
5019750197WASHER£1.29 Add to
5098750987NUT£2.72 Add to
5131051310IGNITION KEY£4.81 Add to
5140451404SWITCH£79.41 Add to
5143151431BATTERY£181.05 Add to
5146251462NUT£1.34 Add to
5496254962PLUG£4.85 Add to
5652256522MICRO-SWITCH£45.93 Add to
5652456524FUSE£2.48 Add to
5654556545HORN£54.23 Add to
5655156551FUSE£2.48 Add to
5655256552FUSE£2.48 Add to
5659456594FUSE£5.67 Add to
5660056600FUSE£2.48 Add to
5664056640FUSE£5.67 Add to
5669656696SWITCH£165.19 Add to
5700857008WASHER£1.35 Add to
5875058750RELAY£27.39 Add to
5876858768MICRO-SWITCH£41.96 Add to
588935889312V PLUG£15.85 Add to
5889558895SWITCH£45.95 Add to
5889758897SWITCH£66.02 Add to
