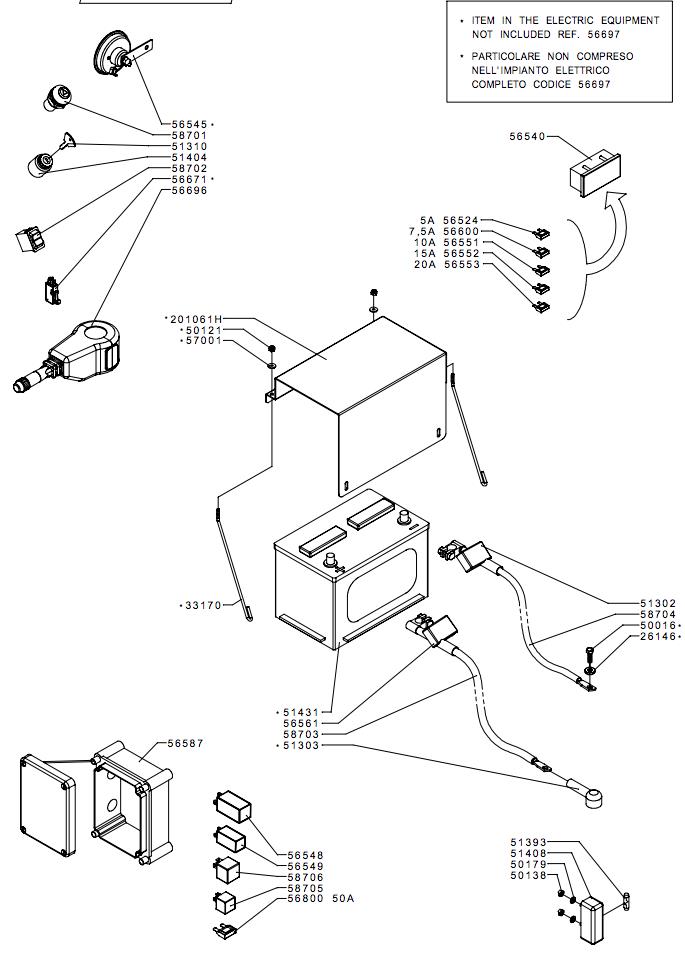

ELECTRIC EQUIPMENT(from s/n 344001 from 2005)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
2614626146WASHER£3.64 Add to
3317033170BATTERY TIEROD£8.24 Add to
5001650016SCREW£18.80 Add to
5012150121NUT£1.36 Add to
5013850138NUT£1.30 Add to
5017950179WASHER£1.30 Add to
5130251302GUARD£8.04 Add to
5130351303INSULATING CAP£2.81 Add to
5131051310IGNITION KEY£4.81 Add to
5139351393BULB£4.03 Add to
5140451404SWITCH£79.41 Add to
5140851408LIGHT£32.02 Add to
5143151431BATTERY£181.05 Add to
5652456524FUSE£2.48 Add to
5654556545HORN£54.23 Add to
5654956549SWITCH£40.89 Add to
5655156551FUSE£2.48 Add to
5655256552FUSE£2.48 Add to
5655356553FUSE£2.48 Add to
5656156561GUARD£8.68 Add to
5658756587CASE£73.23 Add to
5660056600FUSE£2.48 Add to
5667156671MICRO-SWITCH£23.47 Add to
5669656696SWITCH£165.19 Add to
5700157001WASHER£1.36 Add to
5870258702SWITCH£39.59 Add to
